Thermal-acoustic insulation SCHLÜTER®-BEKOTEC

expanded polystyrenepanelfor underfloor heating

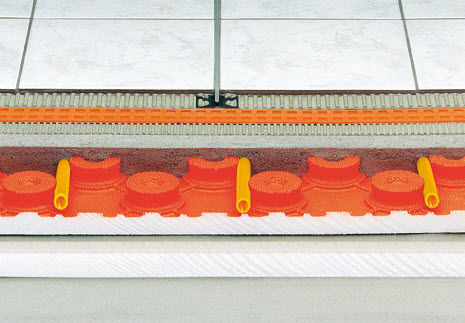

Schlüter®- BEKOTEC-EN is a studded screed panel made of polystyrene, which is designed for the attachment of the Schlüter®- BEKOTEC-THERM-HR heating pipes, with a diameter of 16!mm. The panels are grooved for optimal joining. The heating pipes are attached in the desired spacing between the cutback studs, which are arranged in a regular spacing pattern of 75mm. Conventional screed– CT-C25-F4 (ZE 20) or CA-C25-F4 (AE 20) (maximum flexural strength F5) – is installed above the studs with a thickness of at least 8!mm and at most 25!mm. Schlüter®- BEKOTEC-EN/P consists of polystyrene (EPS 033 DEO), white, without foil coating and is most suited for conventional cement screeds. Schlüter®- BEKOTEC-EN/PF is made of polystyrene (EPS 033 DEO) with an orange sheet coating and is therefore especially suited for flowing screeds (e.g. gypsum screeds).
