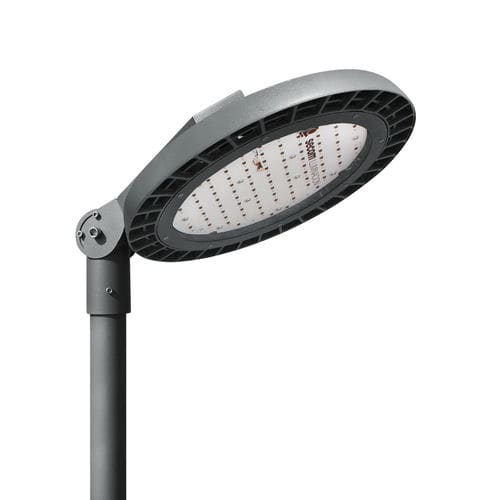

Urban lamp post KONAK CITY

contemporaryaluminumPMMA

KONAK CITY Street lighting Konak City is a lighting system, with LED technology. It is appropiated for vial illumination because of strength and reliability. 40w / 100w / 150w / 200w / 250w GENERAL VISION. Protection degree IP65. Impact protection IK08. Material: Body made of injected aluminum, blasting and polyester thermo painted without TGIC. Outdoor resistance. Optionally it can be supplied with special paint resistant to marine environment Optics: 80º / 150º optics included in LED lamps. Available several asymmetric optics LEDIL brand (Finland). Closure in methacrylate (PMMA) for good light path LEDS and UV resistance. Supply: Driver included for all models, power factor> 0.95. It can be provided optionally with 1-10V dimmable driver, Dali dimmable driver, programmable dimmable driver with 5 levels without control line, double power level with no line of command, header regulation, regulation with motion sensor. Lamps: Osram LEDs module composed by Oslon SSL with a total power of 40w, 100w, 150w, 200w y 250w. Available in 3000ºK, 4000ºK or 5700ºK. High purity aluminium PCB from 1,6 mm. lacquered in white colour with quick connectors. Protections: Internal protection with individual diode for each LED. Standard Surge protector of 4KV driver. Life span: L70B10 100.000 hours. Installation: To mount on column or crosier. Luminaire adjustable in several orientation degrees. Ø 60mm. (Other dimensions on request). A quick connector of 3 or 5 poles, IP66, it allows the installation without opening the luminaire. Ambient temperature: -20º C to 40° C. Optionally supplied with NTC temperature probe.
