Square glass brick BG 1919/16 90F CLEARVIEW
sandblastedsmoothfor flooring

square glass brick
square glass brick
square glass brick
square glass brick
square glass brick
square glass brick
square glass brick
Add to favorites
Compare this product


Characteristics

Shape
square
Finish
sandblasted, smooth
Applications
for flooring
Specifications
high-resistance, flame-retardant

Description

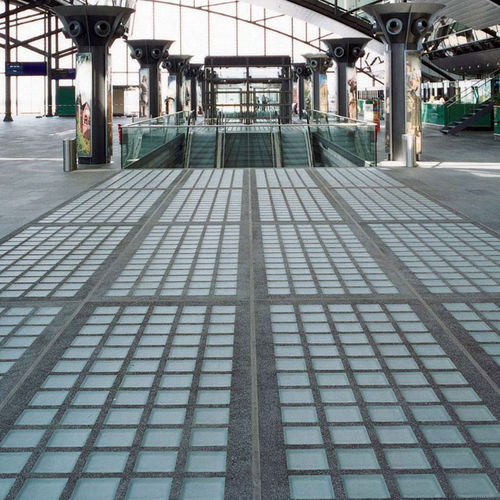

The BG 1919/16 90F glass block, installed horizontally (with less than 15° inclination), provides the structure with a high mechanical resistance, under the effect of flames, the propagation of fire, smoke and heat for 90 minutes (value F90 according to the German regulation DIN 4102-3). This class of resistance not only gives the structure stability and strength but also limits the passage of heat radiationsthus also preventing objects placed in the environments protected by glass block walls from overheating. Glass block BG 1919/16 90F is available in the smooth glass design and with three finishings (transparent, sandblasted on1 side or 2 sides) combining the need for safety with aesthetic values. For their specific performance, F series blocks are used in buildings destined for public use (hotels, schools, nursing homes, restaurants, cinemas, etc.) and in buildings where flammable or combustible materials are stored. In all these cases the horizontal installation of the fire resistant glass blocks must be done according to the indications given in the product certifications and it is essential to adopt all the strategies to guarantee the rapid evacuation of people in the case of fire. -TECHNICAL DATA DIMENSIONS:19x19x16 cm WEIGHT8,3 Kg N. PIECES/M2:~16 (joint 40mm) pcs./m2 WEIGHT M2:~4,20 (joint 40mm) Kg/m2 FIRE RESISTANCE:F90 (DIN 4102) REI 90 [EN 1365-1 - EN 1363-1] PACKAGE N. PIECES. BOX: 2 N. PIECES'PALLET: 120
