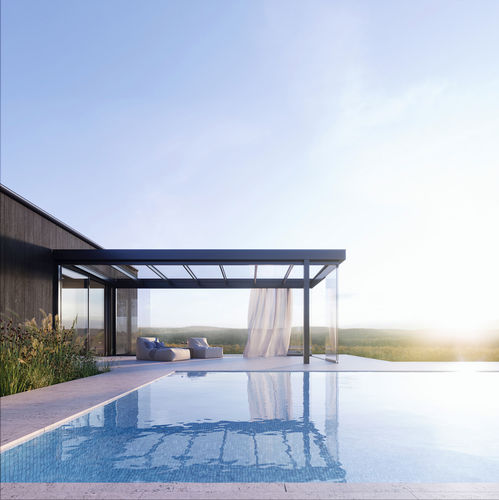

wall-mounted pergola / self-supporting / glass / glass canopy
SDL Acubis SOLARLUX

{{requestButtons}}

Characteristics

  • Installation:

    self-supporting, wall-mounted

  • Material...:

    glass

  • Canopy material:

    glass canopy

  • Specifications:

    custom, modular, motorized

  • Market:

    for bars, for public spaces

Description

Filigree profiles, maximum transparency, perfect for cubic structures

The internal structural members of the non-isolated aluminium profile system lend the roof a breezy elegance. The 2° roof pitch is barely visible to the naked eye, but is enough to ensure that water drains off the roof area perfectly. A flat, one-piece wall joint ensures visual lightness and also enables simple installation on the construction site.

Different versions of the system are available:

Designed as a monolith or pitched roof..
The roof is drained by means of a gutter. Concealed drainage or emergency drainage is possible in the supports.
Detached construction or construction connected to the house architecture can be executed by means of a wall joint
The one-piece wall connection allows easy installation. The rafters are screwed directly to the wall joint.
The roof always has a pitch of 2°.
Depending on the version, three- or four-sided all-round screen only 253 mm in height
Single glazing made of laminated safety glass with 8, 10 or 12 mm glass thickness is used.
The powder-coated and rounded Solarlux aluminium system profiles form a harmonious unit. The design is timelessly elegant
The extensive range of profiles allows building-related selection according to size and static requirements. Steel reinforcements can be inserted into the slots in the load-bearing profiles. This allows large roof constructions and maximum opening and span widths.
