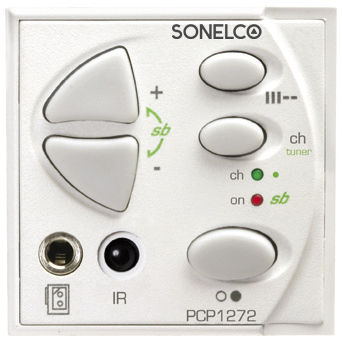

Audio controller PCP1272

FM stereo control / tuner, with 1 stereo channel and message receipt. Infrared receiver, controlled by P4803 or P4804 remote control (optional). Permits storing up to 30 stations with functions: message receipt, superbass,sleep, adjustment of bass, treble, balance and ideal sound. Electronic ON / OFF switch. ON /Sleep/ Sb luminous indicator, bicolour LED type. Key depression luminous indication (Vol+, Vol- and SCAN). 52-step digital volume control with selected position memory. Integrated audio processor. Superbass. SCAN function (change radio station of tuner or external device). Selection of external music channel or internal tuner, with luminous indication of selected audio source. Voltage telecontrol. External channel input (walkman). Direct access to stations via control P4804. Jumper for selection of mono output. For this type of installations place the jumper M/S. Music channels: 1 + Sintonizador FM Power: 1 + 1 W RMS Output Impedance: 8 Ohm. Maximum Power: 1.5 + 1.5 W RMS Frequency Response: 80 Hz. - 21 KHz. (-3dB) Signal/Noise Ratio: > 87 dB Crosstalk: 40 dB Sensitivity: (Terminales 15, 16) 1,45 V Aux Input: 400 mV Mains Input: 16 V DC Nominal Input Level for Warning Switching: 15 V Antenna Connector Input: 75 Ohm Maximum Consumption: 420 mA Standby Consumption: 30 mA Dimensions: 45x45x45 mm. Weight: 50 gr.
