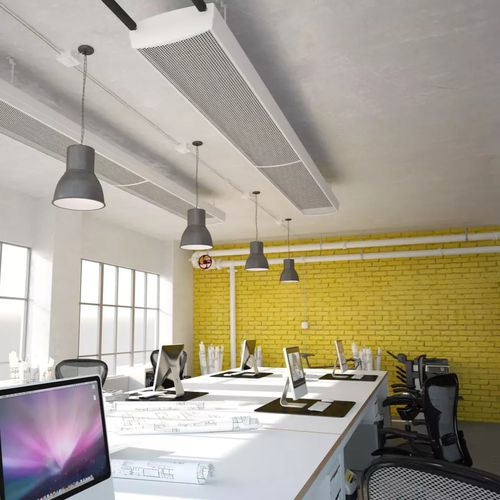

Exposed passive chilled beam for suspended installation
FRB is a passive chilled beam for comfort cooling especially designed for visible/suspended installation in the room.
High cooling capacity, even when there is a large difference in temperature between the coolant supply and the return temperature.
A small, compact unit available in two widths.
Technical specifications
Length: From 1.2 to 3.9 m.
Width: 290 and 430 mm.
Height: 123 and 133 mm.
Size - P k(W/m) - ΔT mk (°C)
FRB 430 - 252 - 10
FRB 290 - 160 - 10
Technical description
Advantages of FRB • FRB is a very compact passive chilled beam. The low
build-in height, choice of two widths, plus the fact that
water is used as an energy transfer medium, means
that the system requires a minimum of space.
• The high performance of this chilled beam means that
it maintains high cooling capacity even at low
D
t
mk,
thus making it possible to increase the temperature
difference between the flow and return. This gives the
product good operating properties and high output
efficiency.
• FRB is specially designed for suspended installation. The
softened form of the beam means that it blends into
the room environments in a natural way.
• FRB is particularly suitable for areas where heating and
ventilation have already been installed, and require
supplimentary cooling.
• The system has no moving parts, generates no sound
and is maintenance free.
• Connection details and valves are easily covered by a
neat connection cover. The cover is mounted after that
the beam is hanged and connected.
Function • Cooling
