Sound attenuating transfer unit
For the transfer of air through a wall
Fits in a circular cut opening
Simple to install
Mounting frame integrated into the transfer diffuser.
Accessories:
TRAC disc valve
VGC telescopic wall sleeve
Standard colour White RAL 9003
5 alternative standard colours
Other colours upon request
Technical Description
Design

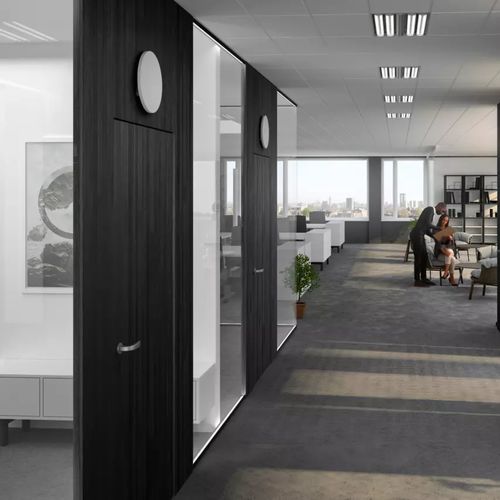

Sound attenuating transfer unit designed for installation
in studded walls, produced as circular baffles containing
insulating sound-absorbing material covered by a reinforced surface layer, rated to Fire Resistance Class B-s1,d0
conforming to EN ISO 11925-2. The baffles have an integrated mounting frame with open slot all around.
Materials and surface treatment
The baffles are made of sheet steel. The mounting frame
is made of galvanised sheet steel. The baffles are painted.
• Standard colour:
- White semi-gloss, lustre 40, RAL 9003/NCS S 0500-N
• Alternative standard colours
- Silver gloss, lustre 80, RAL 9006
- Grey aluminium gloss, lustre 80, RAL 9007
- Blanc semi-brillant, lustre 40, RAL 9010
- Black semi-gloss, lustre 35, RAL 9005
- Grey semi-gloss, lustre 30, RAL 7037
• Non-painted finish and other colours available on
request.
Adaptation
Other colours are available on enquiry.
