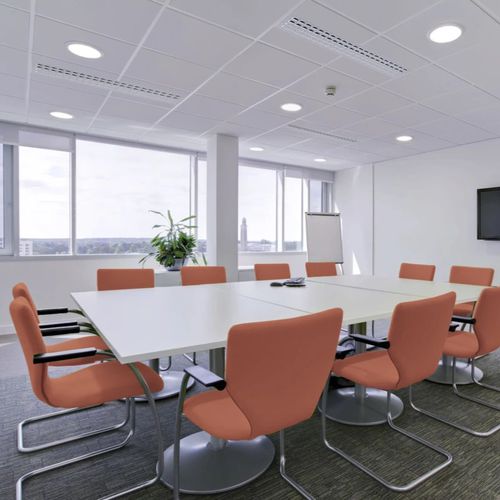

Linear disc diffuser for supply air
100% flexible spread pattern
Provision for vertical air diffusion
Facility for simultaneous vertical/horizontal spread
Large induction effect
Possibility to join together into long lengths, so-called wall-to-wall installation
Measurement and adjustment function
Removable damper
Standard colour White RAL 9003
5 alternative standard colours
Other colours upon request
Technical description
Design
Linear nozzle diffuser consisting of two parts, the diffuser
face and backing box.
The removable diffuser face is equipped with aerodynamically shaped nozzles. The diffuser face is attached to
the backing box with screw fixing concealed behind the
adjustable and removable nozzles.
Materials and surface treatment
The diffuser face is manufactured in galvanized sheet steel
and the backing box is made from sheet steel. The complete diffuser is painted.
• Standard colour:
- White semi-gloss, lustre 40, RAL 9003/NCS S 0500-N
• Alternative standard colours:
- Silver gloss, lustre 80, RAL 9006
- Grey aluminium gloss, lustre 80, RAL 9007
- White semi-gloss, lustre 40, RAL 9010
- Black semi-gloss, lustre 35, RAL 9005
- Grey semi-gloss, lustre 30, RAL 7037
• Non-painted finish and other colours available on
request.
Accessories
Commissioning box:
SRYT 1, made in galvanized sheet steel. Contains removable commissioning damper, fixed measurement unit
and acoustic lining with a reinforced surface layer, to
Fire Resistance Class B-s1,d0 according to EN ISO 11925-
2. Tightness class B on the housing according to SS-EN
12237.
