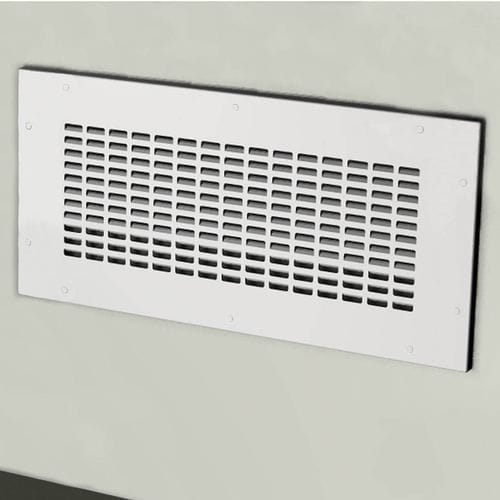

Metal ventilation grill ROW

rectangularwhiteadjustable

ROBUST Wall terminal ROW is a rectangular supply air terminal in a reinforced design for wall mounting. The terminal has been approved for use in penitentiaries and can also be used in detention centres, care institutions, schools etc. The diffuser face is equipped with guide vane perforations, which ensures a controlled spread pattern, as well as an aesthetical design Suitable for constant or variable flow. The ROW can also be used as a low displacement terminal device. Robust design Guide vane perforation, LOCKZONE Cleanable Simple to install Measurable and adjustable air flow Non-fouling Used with commissioning box ALV Standard colour White RAL 9003 5 alternative standard colours Other colours upon request Technical description Design Rectangular supply air terminal in 1.5 mm sheet steel for wall mounting. The terminal is built up of a diffuser face and a mounting plate. The diffuser face has guide vane perforations. Materials and surface treatment The diffuser face is made of sheet steel. The commissioning box ALV is made of galvanized sheet steel. The diffuser face is powder coated. • Standard colour: - White semi-gloss, lustre 40, RAL 9003/NCS S 0500-N • Alternative standard colours: - Silver gloss, lustre 80, RAL 9006 - Grey aluminium gloss, lustre 80, RAL 9007 - White semi-gloss, lustre 40, RAL 9010 - Black semi-gloss, lustre 35, RAL 9005 - Grey semi-gloss, lustre 30, RAL 7037 • Non-painted finish and other colours available on request. Accessories Commissioning box: ALV. Manufactured of a galvanized sheet steel. Includes a removable commissioning damper, a fixed measurement unit and sound attenuating acoustic baffles.
