• High efficiency – low noise
• Speed-controllable
• Integral thermal contacts
• Can be installed in any position
• Maintenance-free and reliable

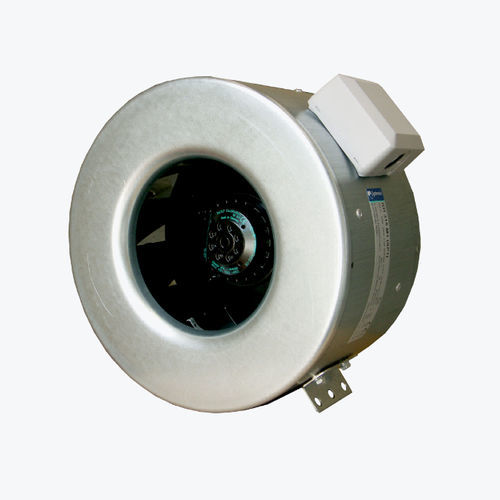

The KD series have external rotor motors with a new type of mixed flow impeller which reduces the external dimensions of the fans. These fans have a high capacity in relation to their compact design. Brackets are supplied with the fans to make installation easier.
The FK mounting clamp facilitates easy installation and removal and prevents the transfer of vibrations to the duct. To protect the motor from overheating the fan has integral thermal contacts with manual reset. The casing is manufactured from galvanised sheet steel.
Norminal data
Voltage (nominal)
230V
Frequency
50Hz
Phase(s)
1~
Input power
257W
Input current
1.14A
Impeller speed
2,562r.p.m.
Air flow
max 1,325m³/h
Capacitance of capacitor
6µF
Temperature of transported air
max 55°C
Maximum temperature of transported air, when speed controlled
46°C
Sound data
Sound pressure level at 3m (20m² Sabin)
53dB(A)
Protection/Classification
Enclosure class, motor
IP44
Insulation class
F
Dimensions and weights
Duct dimension; Circular, inlet
200mm
Duct dimension; Circular, outlet
200mm
Weight
6.8kg
Others
Duct connection type
Circular
Motor type
AC
