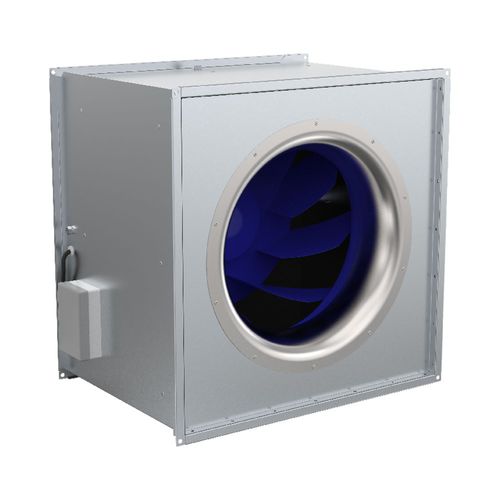

Extractor fan KDRE SERIES
axialductcommercial

extractor fan
extractor fan
extractor fan
Add to favorites
Compare this product


Characteristics

Type
extractor, axial
Installation
duct
Sector
commercial
Material
galvanized steel
Air flow

Min.: 0 m³/h
(0 ft³/h)

Max.: 11,045 m³/h
(390,050.5 ft³/h)

Description

Speed-controllable Integral thermal contacts Can be installed in any positions Maintenance-free and reliable KDRE/KDRD fans have an external rotor motor with a mixed flow type impeller. The KDRE/KDRD series is notable for its relatively high static pressure and high level of efficiency. The casing is manufactured from galvanised sheet steel. To protect the motor from overheating, the KDRE/KDRD fans have integral thermal contacts with leads for connection to a motor protection device. The fans can be installed in any position and are easy to connect using the DS flexible connections. Norminal data Voltage (nominal) 230V Frequency 50Hz Phase(s) 1~ Input power 325W Input current 1.55A Impeller speed 1,387r.p.m. Air flow max 3,611m³/h Temperature of transported air max 70°C Maximum temperature of transported air, when speed controlled 70°C Sound data Sound pressure level at 3m (20m² Sabin) 45dB(A) Protection/Classification Enclosure class, motor IP54 Insulation class F Dimensions and weights Weight 22kg Others Motor type AC
