CONCEPT

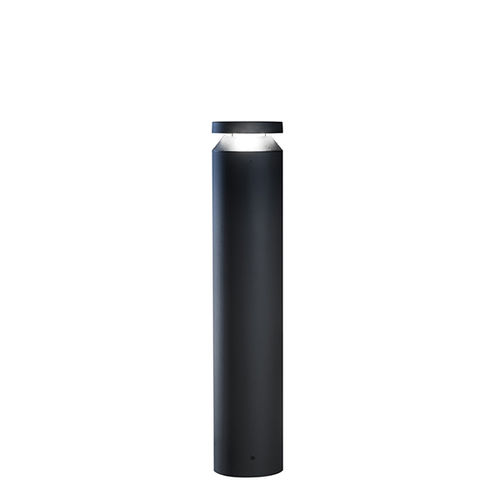

Radial-emission LED bollard.
MATERIALS
Powdered coated anodised die-cast aluminium body, ferrite finish. Die-cast aluminium optical head.
SOURCE
LED Chip on Board Ra84. Ra90 on request. 3500K on request.
OPTIC
Black optical unit for lighting control. A high reflectance anodised aluminium printed reflector. Transparent polycarbonate screen positioned horizontally to avoid upwards flow.
INSTALLATION
Available with three different height poles - 400, 800 and 1000mm - to be combined with the relative head available in four different versions - 60°, 180°, 90° and 90°+90° (the same code for the 800 and 1000mm, specific code for the 400mm). To be completed with a stainless steel anchoring system, available for the double version with a plate for installation with dowels or with fixing rods for installation in concrete.
POWER SUPPLY
Integrated power supply and available in electronic and DALI versions. Casambi control system available as an accessory (only for DALI versions). 220-240Vac 50/60Hz
LIGHT SOURCE
LED
COLOUR TEMPERATURE
2700K
3000K
4000K
POWER (SOURCE)
12W
17W
24W
8W
CRI
84
OPTIC
REFLECTOR
EMISSION
180°
360°
90°
90°+90°
COLOUR AND FINISH
FERRITE
VERSION
FOR BOLLARD H.334mm
FOR BOLLARD
H.734/934mm
SIZE
0160mm
