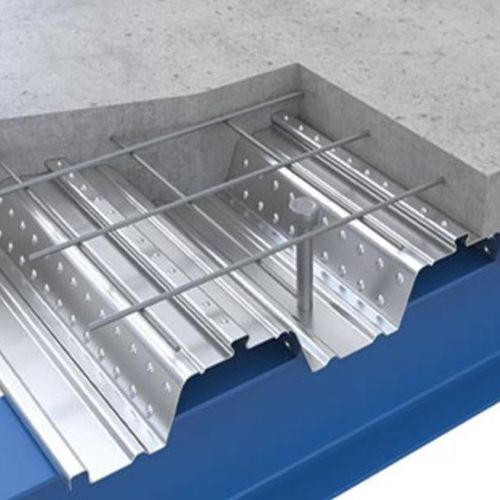

Composite structural floor COMFLOR® 60

steel

The most successful new generation combined 60mm profile ComFlor® 60 has been much copied but never bettered, as the original new generation round shouldered trapezoidal combined 60mm profile. This design is exceptionally resistant to compressive buckling resulting in superior span capability compared to traditional decks. Long span and versatile Low concrete and steel usage Central stud placement Closed ends Better for Health and Safety Long span and versatile: The combined trapezoidal and re-entrant profile provides the benefits of easy service hanging, good shear interaction and long spans. Low concrete and steel usage: A low volume of concrete is needed reducing weight and steel requirement. Central stud placement: Shear studs are placed centrally in the troughs to ensure beneficial placement. Closed ends: Applied in the factory to close off the profile, particularly suitable for pre-studded beams. Better for Health and Safety: The profile is 600mm cover as recommended by Health and Safety guidelines to allow a lighter weight sheet which reduces strain on installation operatives. 1. Deck and beam deflection (ie, ponding) is not included in the table. 2. Deck and mesh weight is not included in the weight of concrete figures. 3. Eurocode density of concrete is taken as: Normal weight (wet) 25 kN/m3 Normal weight (dry) 24 kN/m3 Lightweight (wet) 20 kN/m3 Lightweight (dry) 19 kN/m3
