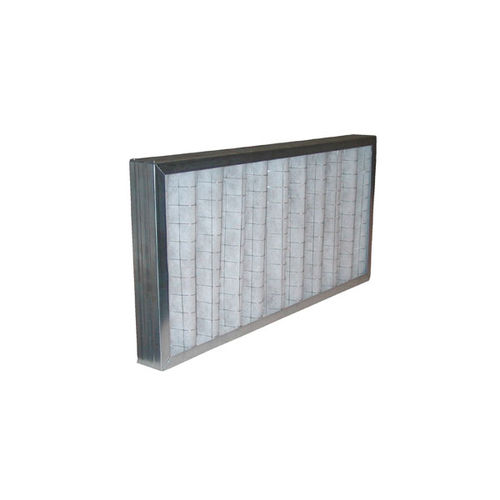

Corrugated high efficency resin bounded synthetic fiber filtering cell with zinc plated steel frame, protection web in zinc plated steel on the two sides. Filtration class F5 (EN779), weighted mean efficency 95% (ASHRAE 57/76).
Versions:
FOSH48 corrugated thickness 48 mm
FOSH98 corrugated thickness 98 mm
Range of employ
Max temperature 80°C
Relative humidity 90%
∆Pt final suggested 250 Pa
∆Pt max 400 Pa
