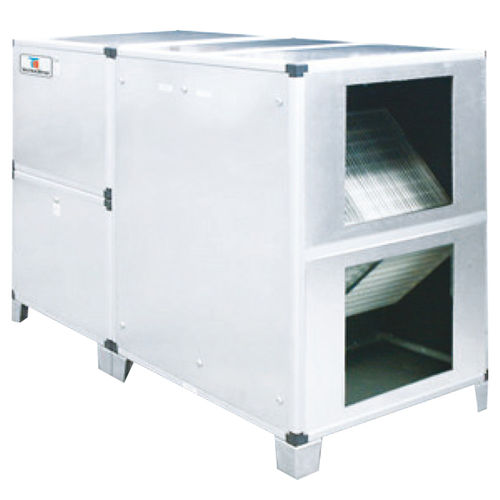

Residential heat recovery unit RCFfor home
Add to favorites
Compare this product
Characteristics
- Sector
- residential
- Applications
- for home
- Air flow
Max.: 23,000 m³/h
(812,237.3 ft³/h)Min.: 3,500 m³/h
(123,601.3 ft³/h)
Description
Heat exchanger high efficiency aluminium cross-flow static heat exchanger with separated and sealed circuits for the air renewal and expulsion.
External casing with extruded aluminium support frame and closing panels with internal thermoacustic insulation.
Double inlet centrifugal fan for the air renewal and expulsion, driven by single speed three-phase 400 V / 50 Hz 4-pole motor with variable belt/pulley transmission.
Air filter with removable elements and G4 efficiency class.
Condensation drainage system.
Upper rain shield for outdoor installation.
Supporting feet.
