Combi beam NPS® CLS
self-supportingprecast concretesteel

combi beam
combi beam
combi beam
combi beam
combi beam
combi beam
combi beam
Add to favorites
Compare this product


Characteristics

Specifications
combi, self-supporting
Material
precast concrete, steel
Cross section
rectangular
Applications
for flooring, framing
Other characteristics
large-span, welded

Description

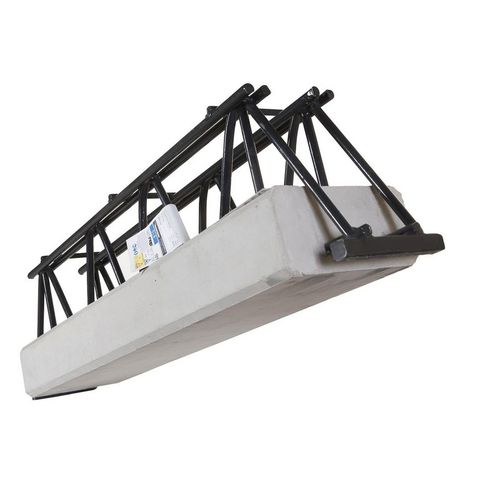

The self-bearing NPS® Cls Beam with a mixed steel-concrete structure is fire-resistant in conformity to Eurocode 2-2. It is ideal for fire-resistant structures with large overloads and/or spans; it is particularly suited to coupling with hollow core slab or slab ceilings. The metal structure, made of structural steel (UNI EN 10025-2), with EN 1090-1 CE marking, is made of one or more trusses welded using metal active gas welding (Process UNI EN ISO 4063-135) according to current NTC 2008. The lower chords are inserted in a class C28/35 concrete footing (UNI EN 206-1:2006), precast and equipped with reinforcement and surface reinforcement sized to support the load of the heavy ceilings on NPS® Cls Beam.
