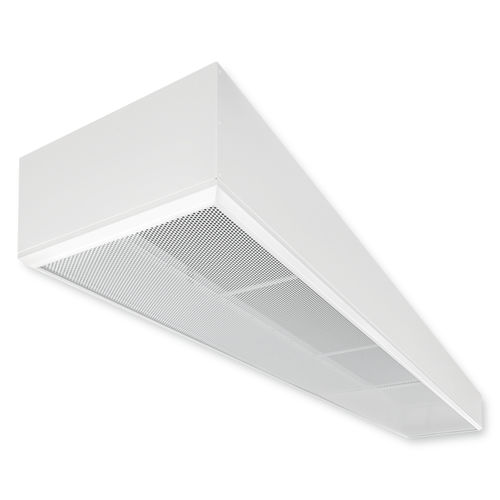

Passive chilled beam PKV

PASSIVE CHILLED BEAM IN NOMINAL LENGTHS OF UP TO 3000 MM AND WITH A HORIZONTAL HEAT EXCHANGER Passive chilled beam with 2-pipe heat exchanger for ceiling installation, either freely suspended or above an open cell ceiling For room heights from 2.60 m Comfortable room cooling Water connection from the side or from the top 3 standard widths and heights for optimum dissipation of heat loads Optional equipment and accessories Control equipment Aluminium frame with perforated metal facing Heat exchanger powder-coated black Powder coating in many different colours, e.g. RAL CLASSIC Application Passive chilled beam of Type PKV for ceiling installation, either freely suspended or above an open cell ceiling, suitable for room heights from 2.60 m Passive chilled beam (no supply air) for new buildings and refurbishment projects Dissipation of high heat loads using a 2-pipe heat exchanger Energy-efficient solution since water is used for cooling Special characteristics Air-water component for the dissipation of heat loads Horizontal heat exchanger as 2-pipe system Aesthetic frame and perforated metal facing for freely suspended installation in comfort zones Water connections at the narrow side, Ø12 mm Cu pipe, with plain tails, either straight or 90° bent upwards Nominal sizes Nominal length: 1000, 1500, 2000, 2500, 3000 mm Nominal width: 295, 455, 575 mm Nominal height: 110, 200, 300 mm Width of heat exchanger: 280, 440, 560 mm
