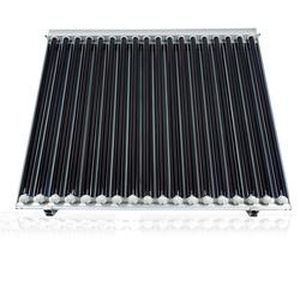

Evacuated tubular thermal solar collector SKY PRO CPC 58

for heatingfor roof

Kloben SKY PRO CPC 58 solar collectors are the perfect combination between high efficiency and leading edge design. Fully designed and manufactured in Klobens’ Italian facilities, SKY PRO CPC 58 solar collectors undergo extensive checks to guarantee constant and reliable performances. Only top quality materials are used. The glass tube is double-walled and glass welded at the end. A vacuum is induced within the two glass walls. The internal wall is coated with a recycled multi-layer metallic selective material which maximizes the absorption of the sun’s electromagnetic radiation. The absorption consists of a “U” shape copper circuit, which is in contact with specific aluminium heat conductors that increase the heat exchange area. Each unit is contained in a glass pipe that is connected in parallel to a collector located at the top of the panel and collects the carrier fluid flowing in each circuit. In compliance with the Regulations, the metal frame is electrostatically painted to prevent saline mist corrosion. The assembly of the individual components, which make up the structure, takes place using special brackets for simplified interlocking assembly. The profile is designed so to allow the complete “interlocking” assembly of the collector.
