steel shoring tower
TOP 100 Variant Factory Ltd

Add to MyArchiExpo favorites
steel shoring tower steel shoring tower - TOP 100
{{requestButtons}}

Characteristics

  • Material:

    steel

  • Load capacity:

    400 kN

Description

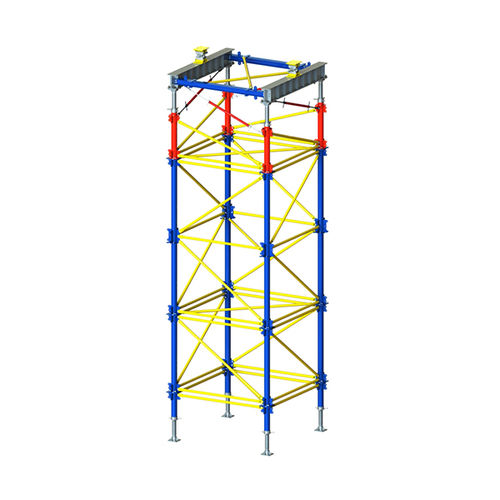

Top Tower 100 is a heavy-duty scaffolding system with broad spectrum of applications in bridge-building, highrise and industrial construction. Having maximum load-bearing capacity of 100 kN per leg, the system is mainly used for (as):
- Forming of different kinds of cast in place slabs e.g. flat and inclined;
- Shoring system for bridges superstructures e.g. precast or metal;
- Temporary support during complex installation works;

Top Tower 100 is a cost-saving shoring system for heavy loads, which suits best for construction of bridges, flyovers, overpasses, viaducts as well as other types of industrial projects.

Load-bearing capacity:
Load bearing capacity up to 100 kN per leg;
Tower base can be anchored to the ground in order to increase load bearing capacity.

System adaptability:
Very versatile modular system for different shoring configuration;
The system can be precisely adjusted to any length, width and height;
Independent jacks for elevations.
