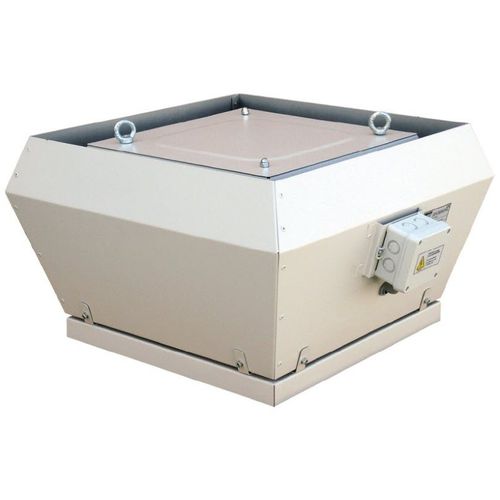

Extractor fan VCFcentrifugalroofcommercial
Add to favorites
Compare this product
Characteristics
- Type
- extractor, centrifugal
- Installation
- roof
- Sector
- commercial
- Location
- outdoor
- Material
- galvanized steel
- Color
- white
- Other characteristics
- permanent extraction
- Air flow
Min.: 224 m³/h
(7,910.5 ft³/h)Max.: 10,835 m³/h
(382,634.4 ft³/h)- Weight
16 kg, 17 kg, 20 kg, 36 kg, 44 kg
(35.27 lb, 37.48 lb, 44.09 lb, 79.37 lb, 97 lb)- Height
Min.: 260 mm
(10 in)Max.: 498 mm
(20 in)- Width
545 mm, 575 mm, 587 mm, 815 mm, 855 mm
(21 in, 23 in, 23 in, 32 in, 34 in)- Length
545 mm, 575 mm, 587 mm, 815 mm, 855 mm
(21 in, 23 in, 23 in, 32 in, 34 in)- Power
210 W, 230 W, 500 W, 510 W, 800 W
Description
Epoxy coated galvanized sheet casing
Backward curved type, direct coupled and external rotor fan
The fans are protected with mesh wire
Motor protection class is IP 44 and electrical connection box protection class is IP 67
Accessible rotor and motor for maintenance and service
Speed controllers are optional
Repair and maintenance switch is optional
VSC Speed Controller
BDD Circular Back Draft Damper For Roof Type Fans
MC Roof Type Fan Mounting Base Frame
SDS Roof Type Fan Mounting Base Frame with Silencer
