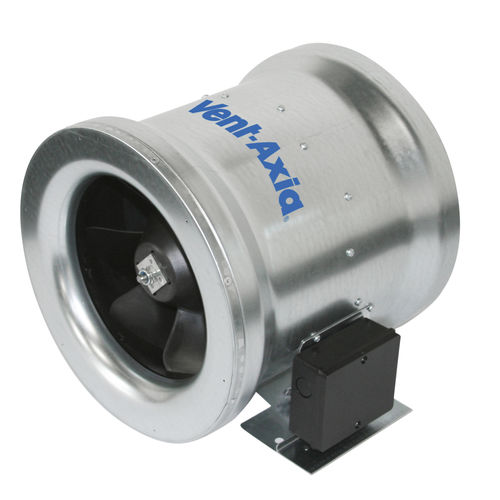

Axial fan ACM100-200 & ACM250-315 SERIES

ductcommercialmetal

ACM 100-200 Designed and manufactured in UK Three speed motor Timer versions available Removable motor core Rotating motor chassis IP44 rated Aesthetically pleasing with wipe clean polymer casing Sound data from independent testing Running speed selected on installation ACM 250-315 Available in two sizes Supplied complete for simple installation Optimise fan performance by using an approved Vent-Axia controller Diagonal impeller with stator Galvanized metal housing Integrated thermal switch Includes a mounting bracket Designed to meet IP54 Ducted Ventilation Vent-Axia has designed a complete range of energy efficient Mixed Flow In-Line fans that are now quieter, offer two and half times the pressure of conventional axial fans and are dimensionally more compact making them ideal for many ducted applications. The ACM Mixed Flow In-Line fan can operate in both horizontal and vertical positions. Motor All motors have three speeds selectable on installation and are fitted with Standard Thermal Overload Protection (S.T.O.P.). Designed for ambient temperatures up to +50°C. All sizes with capacitor run motors. All sizes are Class II appliances. Supply voltage 220-240V/1/50Hz PRODUCT SPECIFICATION: Vent Axia has designed a complete range of energy efficient Mixed Flow In-Line fans that are now quieter, offer two and half times the pressure of conventional axial fans and are dimensionally more compact making them ideal for many ducted applications. The ACM Mixed Flow In-Line fan can operate in both horizontal and vertical positions.
