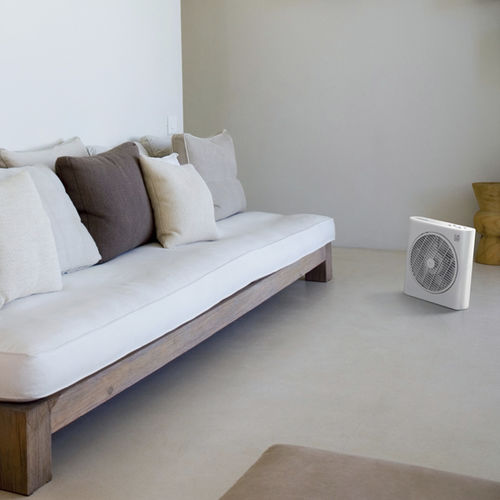

Extractor fan ARIANTE

floortableresidential

Description • Casing moulded from plastic resin able to withstand aging induced by exposure to sunlight (UV-resistant), and formulated with an antistatic compound to prevent accumulation of dust. • Nominal diameter: 300 mm • Protective grilles made of ABS impact- and UV-resistant thermoplastic resin: front grille rotatable, rear grille fixed. • Fan rotor moulded from ABS thermoplastic resin. • 3 speed asynchronous motor with shaft turning in self-aligning and self-lubricating bushings; thermal overload protection. • Air flow 1300 m3/h • Front grille rotation mechanism incorporating synchronous motor with rubber gear housed in the front part of the casing. • Provided with two rotary switches: o The first switch, which has 4 positions (OFF-1-2-3), is used to turn the fan on and off and select the three speeds of the rotor o The second switch, which has 2 positions (ON and OFF), is used to control the rotation of the front grille by turning the synchronous drive motor on or off. • PVC power cord, length 1.80 m, with 10A moulded plug conforming to the requirements of the EU Machinery Directive. • IMQ safety and performance certifications • Recipient of the Compasso D’oro award for product design
