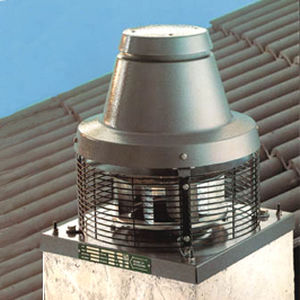

Roof fan TIRACAMINO

Description • Base manufactured from phosphated pressed steel, epoxy powder coated with hammered effect finish, guaranteeing long-term resistance to atmospheric agents. • Aerodynamically contoured inlet port for optimum performance, fashioned as a single unit with the base and gauged to optimize air flow. • Pressed steel motor cover: pickled and phosphated surface, polyester powder coated and oven baked finish, colour grey, with hammered texture. • Asynchronous motor with thermal overload cutout and shaft turning in ball bearings, coupled to backward curved impeller with dynamically balanced self-cleaning aluminium blades (UNI ISO 1940, Point 1 – Class 6.3). • Maximum airflow: 750 m3/h. • Protection grille with anti-bird rings (in accordance with UNI ISO 13857 standard), made of electrically welded steel; epoxy paint finish, colour black. • Sub-frame for fixing the appliance to the flue stack. • Equipped with steel safety wire for anchoring the appliance once installed. • Designed for use at a continuous operating temperature of 200 °C. • Variable speed controller supplied as standard.
