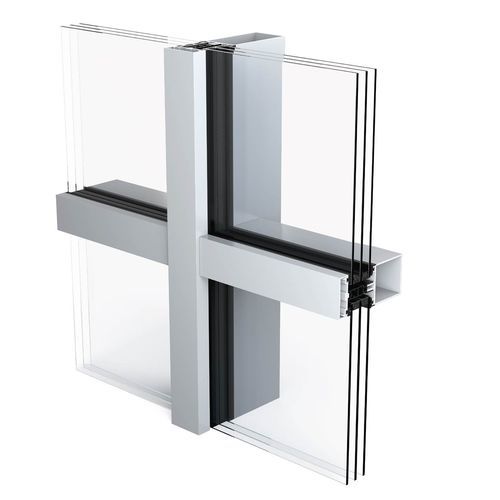

Stick system curtain wall WICTEC 50

glasswith integrated insulationacoustic

WICTEC 50 is the basic version of the stick system façade, with an extra-narrow face width of 50 mm, inside and outside. The unique flexibility is demonstrated by the various system variants and enhancement options, all of which are feasible with minor additions to the system and without compromising on appearance. Technical performance: System width: 50 mm Profile depth: 50 mm to 260 mm Thermal insulation: Uf value up to 1.2 W/(m²K) Infill thickness: 3 mm to 63 mm Glass weight: up to 5.6 kN Polygon façade: up to 45° (per side = 90° angle) Roof pitch: up to 10° System technology: • Ideal for vertical and polygon façades, sloped glazing and spatial structures • Individual design thanks to a wide range of profile geometries for the structural and glazing profiles • Alternative: Industrial design for technical look of steel profiles • Reliable glass load transmission (up to 5.6 kN), with adapted transom-joint technology • Overlapping and secure drainage at the cross point, without mechanical mullion processing, ensures tried-and-tested impermeability • Filigree look without any change in appearance to the inner mullion and transom gaskets • Broad selection of profiles enables economic adaptation to structural requirements, with the additional option of internal reinforcement • Glazing from outside with visible or concealed screws • Extensive solutions for structure junctions and conservatories Additional options in identical design and technical set-up: • Passive house curtain wall • SG-design (integrated pressure profile) • Structural glazing curtain wall • Add-on curtain wall for steel and wood • Integrated sun protection • Fire protection curtain wall
