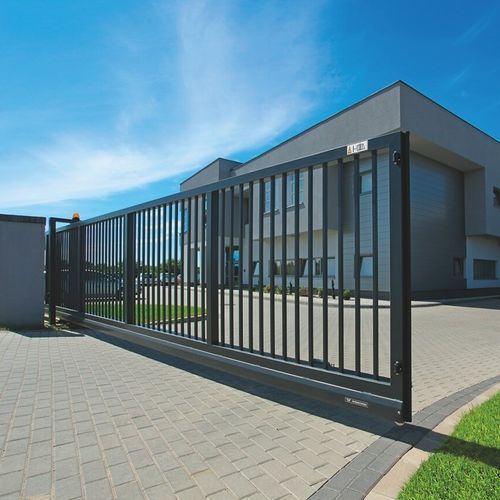

Cantilever sliding gate PI 200 is designed to close a driveway up to 16m wide. Two cantiliver gates (2 x 12 m) allow to close as wide as 24 m driveway.
Main features:
• 200 x 155 mm ground track,
• triple guiding frame in a manually-operated gate,
• double receiver post,
• balancing back frame to prevent the gate from tilting when fully opened,
• power-operated gate with a drive located in the post,
• available external drive execution.
Cantilever sliding gate PI 130 is designed to close a driveway up to 9 m wide. Two cantiliver gates (2 x 8m) allow to close as wide as 16 m driveway.
Main features:
• 130 x 115 mm ground track,
• double guiding frame,
• double receiver post,
• balancing back frame to prevent the gate from tilting when fully opened (depending on the gate width),
• power-operated gate with a drive located in the post, closed with a cover,
• available external drive or short-post drive executions.
Cantilever sliding gate PI 95 is designed to close a driveway up to 7 m wide. Two cantiliver gates (2 x 6 m) allow to close as wide as 12 m driveway.
Main features:
• 95 x 85mm ground track,
• double guiding frame in a manually-operated gate,
• single receiver post,
• balancing back frame to prevent the gate from tilting when fully opened (depending on the gate width),
• power-operated gate with the drive located in the post, closed with a cover,
available external drive execution.
