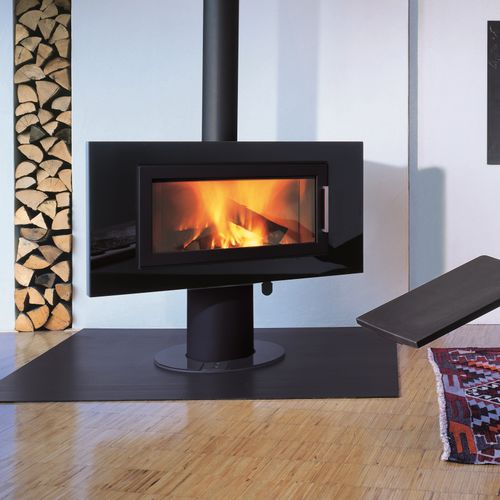

Elevated elegance in broadband format with rotatable combustion chamber
wodtke Air Control regulates the combustion air supply for an optimal combustion process. The system requires no valves or gates. This significantly increases operating comfort and eliminates user error. All users need to do is regularly refill the fuel supply.
Air Control thermal regulation is based on a hydraulically activated control valve connected to a temperature sensor through a capillary system. Thanks to Air Control, the right quantity of combustion air is delivered to the right area of the combustion chamber. At the beginning, when the system is still cold, the fire needs a large quantity of primary air in order to quickly start a clean combustion process. This combustion air must be fed through the grate from below. As the system heats up, the thermal oil in the temperature sensor expands, slowly closing the control valve. This process automatically closes the primary air duct. Afterwards, the combustion air is fed downwards to the flame as secondary air and as an 'air curtain' for the window. This AWS air wash system effectively delays soiling of the viewing window.
