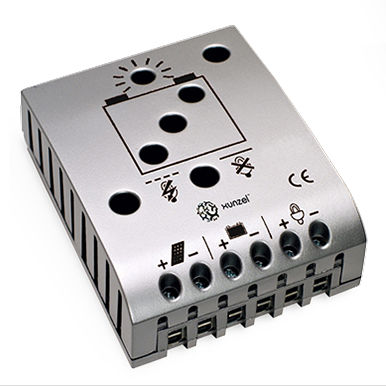

Solar controller for PV applications ISCC-L™ SERIES

Solar Charge and Discharge Controller 12/24V Remote Digital Display iSCC-DL™ of XUNZEL (OPTIONAL) DIN Rail Adapter iSCC-DIN™ of XUNZEL (OPTIONAL) Control and Protect your battery. Avoid overcharges and deep-discharges Protects the battery from overcharges (caused by PV solar panels) and from overdischarges (caused by DC loads) Ideal for small Off-Grid and Off-Shore applications, UPS and Back-up, telecom and CATV, traffic, agricultural, marine and caravan, cathodic protection, professional installations… Configurable Battery Type: sealed (AGM and GEL) or vented (FLOODED) lead-acid batteries 12V / 24V automatic detection Four-stage PWM charging method (Bulk – Absorption – Float – Equalization) Integrated temperature compensation Intuitive 5 LED display: 1 for Charging state, 1 for Load state and 3 for Battery SOC Acoustic alarm to warn about an impending low-voltage disconnection Configurable low-voltage disconnection: SOC or voltage-controlled Positive grounding Fully electronic safety functions High performance microcontroller Large terminals: up to 16mm2 DC Load output: no need of any inverter to power DC loads (e.g. the ultra-efficient low-voltage, 12VDC or 24VDC, LED NATURE™ Series lamps of XUNZEL), increases savings and efficiency of the solar system considerably Remote Digital Display iSCC-DL™ of XUNZEL (optional) Din Rail Adapter iCC-DIN™ of XUNZEL (optional)
