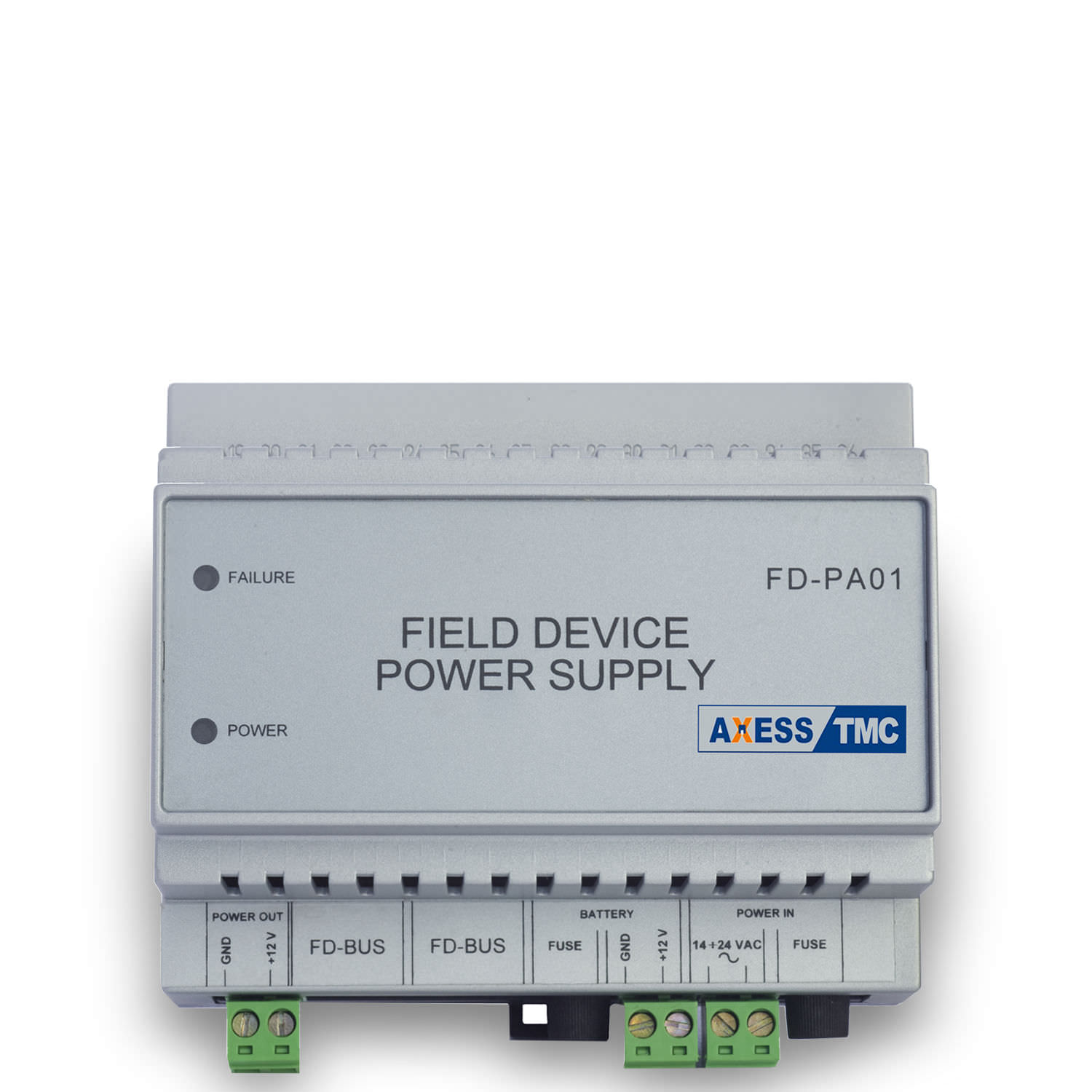

DIN rail energy manager
FD-PAO1
Zucchetti Axess
Functional characteristics
The FD-PA01 is a power supply module with back-up battery, It has the following characteristics:
• Designed for mounting on DIN rail
• Able to supply 12V 1.3A
• Able to supply field devices for more than 4 hours when linked to a lead battery with 12V 7.5Ah capacity
• Battery disconnection at 10V for over-discharge protection
• Output can be connected in parallel with other power supplies
• Able to monitor all electrical parameters, including battery efficiency tests, through a special connection to the FD-DA01 module
• Visual On/Off indicator for main power supply
• Fault and/or overload indicator
• Connection to FD-BUS through an RJ45 connection
Double connector (internally in parallel) for easy reconnection to the FD-BUS.
