recessed downlight / LED / round / cast aluminum



  • Type:


  • Light source:


  • Shape:


  • Material:

    cast aluminum

  • Protection class:



Recessed luminaire unit with 1 fixed LED spotlight head as downlight

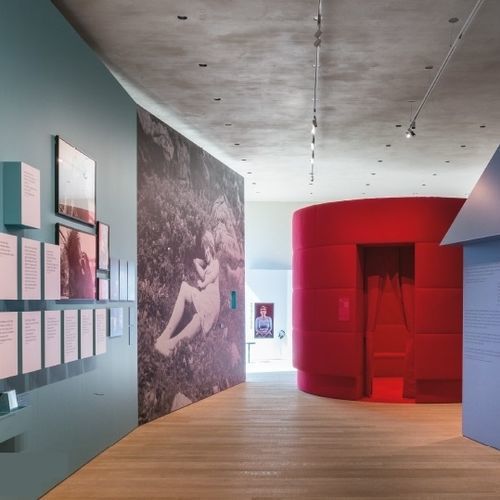

Equipped with a lens system for high quality accent lighting in museums and exhibition spaces
Combination of LED PCBs, lenses and films provide uniform light distribution with high intensity and soft transitions, without stray light from the light cone
Film can be exchanged for other light distribution characteristics from superspot to wideflood, and oval
Optic consists of glass lens and plastic foil
Lamp unit made of diecast aluminium, coated white
Front ring for glare reduction and accommodating films
Ring louvre or extended glare reduction tube can be exchanged for the front ring and are also for accommodating the films
Recessed housing made of diecast aluminium, coated white
50000 h service life at 90 % luminous flux
Colour temperature: 2700 K (LED927: warm white), 3000 K (LED930: warm white), 4000 K (LED940: intermediate white)
Colour rendering index: Ra > 90
Colour tolerance: SDCM 2 initial, LED PCBs premium-selected
Luminaire luminous flux up to 350 lm (4.2 W)
Installation: using spring clips, ceilings 1 to 25 mm thick
Control unit (350mA), connection cable and distributor must be ordered separately
Black version on request
