Hanging light fixture TECTON

LEDlinearflexible

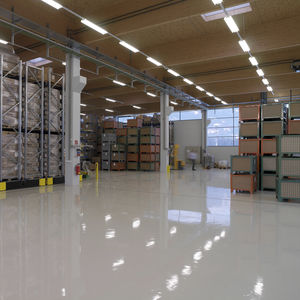

features TECTON LED continuous row luminaire, wide beam Energy-efficient LED continuous row luminaire with light efficiency of up to 179 lm/W Application focus: Presentation and Retail (shelf and surface lighting), industry and engineering (general and workplace lighting) For illuminating shelf surfaces and aisles, medium wide light distribution Overlapping PMMA lenses (shatter-resistant to IK06) achieve IP50 protection for LED and optic with all TECTON C LED luminaires Split lens concept for reducing perceived glare LED continuous row luminaire with 64 highly efficient mid-power LEDs per segment Linear Tecton LED solution. High-quality look designed to match trunking LED continuous-row luminaire made of roll-formed sheet steel in white polyester lacquer finish All-in-one solution: lighting batten, lamp and reflector are combined in one product and allow a 100 % continuous ribbon of LED light without gaps Colour tolerance between several luminaires of max. 2 MacAdam ellipses LED Service life: up to L95 at 100.000h Dimming level for DC mode preset to 15 % LED luminaire is Switch Dim-compatible 100 % flexible, tool-free mechanical and electrical installation using CLIX-technology by means of two side-mounted rotary levers on the TECTON trunking CG assembly optic of aluminium, white powder-coated, consisting of two reflector wings for reducing the UGR value: TECTON C High-Efficiency UGR < 19 and TECTON C High-Output UGR < 22 (CG optic is optimised for the TECTON C WideBeam luminaires) Mounting aid for CG assembly optic via add-on clip to end caps of the LED luminaire
