Floor form liners

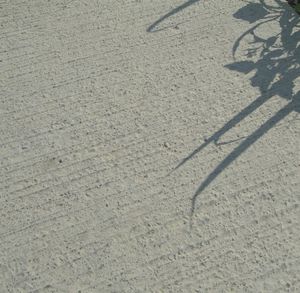

The functional formliner creates a smooth concrete surface with pyramid-shaped fittings at a height of 2 millimeters. The concrete surface achieves a rank of resistance (to skidding) of R13.

The functional formliner creates a smooth concrete surface with 4-millimeter wide fittings that are aligned in a rhombus pattern.

A functional formliner with extremely fine, 3-millimeter wide, pyramid-shaped fittings that are set directly adjacently at a height of 0.7 millimeters. An appearance of a nearly smooth surface is created, the rank of resistance (to skidding) ...

Mat sizes A mm 4000 B mm 7000 Mat thickness mm ~ 9,00 Dimensional tolerances A/B % ± 1,00 Mat thickness mm ± 2,00 Weight kg/m² ~ 9,00 Shore Hardness A 65-70 Heat resistance °C + 80,00

Dimensional tolerances A/B % ± 1,00 Mat thickness mm ± 2,00 Weight kg/m² ~ 11,00 Shore Hardness A 65-70 Heat resistance °C + 80,00

S t r 110 - Floorgrip Dimensions L. 1.000 x H. 2.000 mm F l x 110 - Floorgrip Dimensions L. 1.000 x H. 3.000 mm Esx110 - Floorgrip Dimensions on demand
