... from each other and also have separate access to guarantee optimum heat dissipation. The versatility of the light sources, the wide range of light beams and the high degree of protection (IP 66) make ...
Height: 250 mm
Length: 300 mm
Width: 403 mm
The Strand Cantata LED Fresnel Full Color (FC) is a modern LED theatrical Fresnel designed for midsized applications. This full color luminaire uses ...
Height: 295 mm
Length: 355 mm
Width: 342 mm
... adjustment ARC version on request, DMX motorization 3 ways for pan and tilt movement and focus adjustment FUNCTIONAL FEATURES LED temperature control and management system for best-range working maintenance Constant ...
... its high output LED, its 200 mm Fresnel lens and its great beam quality, this fixture gives a vety powerful wash effect. Presenting an exceptional flat and variable beam angle this LED Fresnel ...

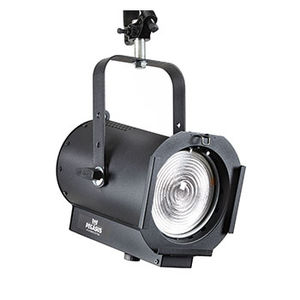

... a 6-inch white output LED Fresnel that is both Mains Dimmable and DMX controlled all in one luminaire (user selectable at the fixture). Pegasus replicates the soft light ...
The Leviton LEO LED Fresnel is a compact, lightweight fixture suitable for small TV studios, stages and multi-purpose venues with limited ceiling space. The 100W, white light ...
Professional 500/650W spot with ø120mm fresnel lens, Gy9,5 lampholder, horizontal screw focus mechanism and microswitch disconnector. Complete with colour frame and safety guard.
... Key Features: Light Source: 300W COB LED (available for cool white), 50,000 hrs Power Consumption: 390W CRI: Ra ≥ 92 High efficiency fresenal lens Flat and even spot image with soft edge Automatic ...
... to 53 degrees Lamp type: Halogen 1000W T19 Lamps socket: GX 9.5 Lamp code: PLLP1000T19 Protection rating: IP 20 Lens type: FRESNEL lens diameter mm. 150 Dimensions (W x H x D): mm. 215x350x370 Weight:5.5 lb
... PC or Fresnel. Complete with colour frame, halogen lamp not included. Risalto 300/500 W This fixture can achieve a zoom range that goes from 7° to 48° with a PC lens and from 8° to 40° with a Fresnel ...
Your suggestions for improvement:
A Fresnel projector, named for its French physicist inventor, is a plano-convex device using a particular type of lens.Applications
These projectors are used for both indoor and outdoor stage lighting. Its lens can create a variety of illumination effects including highly nuanced back-lighting.Technologies
Such devices are relatively simple, consisting of a housing containing a mobile mechanism holding the bulb and the reflector. The beam exits through a Fresnel lens. The Fresnel-reflector combination produces a parallel beam of determined size. The beam can be a narrow spotlight or a broad floodlight, depending on how far the bulb is from the lens. The convex side of the lens is made up of a series of concentric rings.
This type of projector produces very soft light, without sharply-defined edges, creating a nuanced ambiance. As with PAR lights, Fresnels can be equipped with shutters to control beam shape.
- More compact
- Easy to handle and adjust
- Easy to set up
- Energy- efficient
