Wood look form liners

A wooden pattern with adjacently aligned, small squares. The squares are characterized by overlapping, tapered wooden boards with a slight grain.

A vertically running wood pattern with slightly grained boards. The boards are arranged in different heights with an identical spacing.

A wood pattern with varyingly wide casts on offset layers.

A wood pattern with masts in an offset arrangement. The look is reminiscent of a stake wall.

A wood pattern with long and short boards. The deep grain lends a rustic-natural and wild look to the façade.

A wood pattern with evenly places board and a roughened, unfinished surface.

A vertically running wood pattern with robust grains. The boards are evenly rowed with inconspicuous joints.

A vertically running wood pattern with evident grains and prominent tree-rings. The relief-like pattern creates a clear color shading.

A vertically running wood pattern with irregularly wide, adjacently rowed boards. The smooth surface creates the look of a wooden wall.

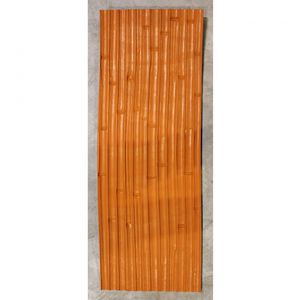

A vertically running wood pattern. Narrow, varyingly long branches lend a bamboo look to the façade.

S t r 301 - W oodline Dimensions L. 1.000 x H. 1.000 mm F l x 301 - W oodline Dimensions L. 3.000 x H. 1.000 mm Esx301 - W oodline Dimensions on demand

Dimensional tolerances A/B % ± 1,00 Mat thickness mm ± 2,00 Weight kg/m² ~ 9,00 Shore Hardness A 65-70 Heat resistance °C + 80,00

Mat sizes A mm 3100 B mm 10000 Mat thickness mm ~ 5,00 Dimensional tolerances A/B % ± 1,00 Mat thickness mm ± 2,00 Weight kg/m² ~ 7,00 Shore Hardness A 65-70 Heat resistance °C + 80,00

Mat sizes A mm 4000 B mm 7000 Mat thickness mm ~ 9,00 Dimensional tolerances A/B % ± 1,00 Mat thickness mm ± 2,00 Weight kg/m² ~ 9,00 Shore Hardness A 65-70 Heat resistance °C + 80,00

Mat sizes A mm 1000 B mm 6000 Mat thickness mm ~ 20,00 Dimensional tolerances A/B % ± 1,00 Mat thickness mm ± 2,00 Weight kg/m² ~ 13,50 Shore Hardness A 65-70 Heat resistance °C + 80,00

Dimensional tolerances A/B % ± 1,00 Mat thickness mm ± 2,00 Weight kg/m² ~ 9,00 Shore Hardness A 65-70 Heat resistance °C + 80,00

Mat sizes A mm 1000 B mm 3000 Mat thickness mm ~ 13,00 Dimensional tolerances A/B % ± 1,00 Mat thickness mm ± 2,00 Weight kg/m² ~ 11,00 Shore Hardness A 65-70 Heat resistance °C + 80,00

Mat sizes A mm 1000 B mm 8500 Mat thickness mm ~ 12,00 Dimensional tolerances A/B % ± 1,00 Mat thickness mm ± 2,00 Weight kg/m² ~ 13,00 Shore Hardness A 65-70 Heat resistance °C + 80,00

Mat sizes A mm 1028 B mm 8000 Mat thickness mm ~ 7,00 Dimensional tolerances A/B % ± 1,00 Mat thickness mm ± 2,00 Weight kg/m² ~ 9,00 Shore Hardness A 65-70 Heat resistance °C + 80,00
