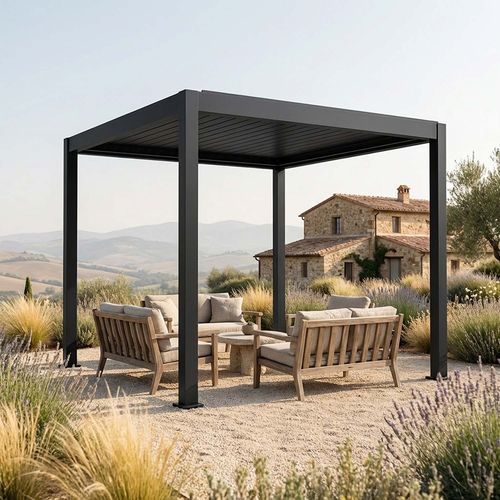

床に固定パーゴラ LYRA T6

独立型塗装アルミニウム製アルミニウム

Overview
Lyra T6 is a bioclimatic pergola with adjustable louvres from 0° to 100°, locked securely in any position. The structure uses T6 ArmorAlloy™ (6063-T6 aluminium) and is INTERTEK EN 13659 certified (tested to withstand winds up to 143 km/h and snow loads up to 160 kg/m²). Available in five standard formats (3×3 m, 3×4 m, 3×6 m, 4×4 m, 4×6 m) and two powder-coating colours.

Highlights

• Bioclimatic system: motorised louvres 0°–100° for light, shade and ventilation control.
• T6 ArmorAlloy™ 6063-T6 aluminium structure (aerospace-grade aluminium, enhanced heat treatment).
• INTERTEK EN 13659 certified: tested to 143 km/h wind and 160 kg/m² snow load.
• Solar rain sensor included (solar battery, 80 m wireless range, corrosion‑resistant metal housing).
• SealDrive™ IP67 submersible motor (DC24V/30W) with certified failure rate <0.025%.
• Integrated DuoGlow™ bi-colour perimeter LED (3000K + 6000K, CRI 90) included.
• DualChannel™ post: dedicated separate channels for electrical cables and water drainage.
• GripBolt™ M8 bolt-lock system prevents loosening over product life.

Six exclusive technologies

• T6 ArmorAlloy™ — heat-treated 6063-T6 aluminium: higher tensile strength vs previous generations.
• DualChannel™ Post — separate channels for electrical wiring and water, transformer hosted inside pole.
• GripBolt™ M8 — M8 bolt-lock fasteners that do not loosen and minimise maintenance.
• SealDrive™ IP67 — submersible motor certified for immersion and full dust protection.
• DuoGlow™ CRI 90 — integrated perimeter LED with two colour temperatures (3000K and 6000K), CRI 90.
• DropSense™ Solar — solar rain sensor that detects first drops and triggers automatic closure (solar battery with ~6 months autonomy, 80 m wireless range).

Included & packaging

• Complete aluminium structure (poles, beams, louvres) in selected colour.
• Pre-assembled IP67 DC24V/30W motors factory-installed in the roof.
• Integrated bi-colour IP67 perimeter LED strips.
• Solar rain sensor pre-paired with the pergola.
• YZ21008-01A transformer IP65 housed inside the pole; pre-wired, plug & play connectors.
• M8 GripBolt™ hardware, steel base plates (4 plates for smaller formats, 6 for larger formats) and illustrated installation kit.

Control, connectivity and compatibility

• 868.35 MHz remote control (range >200 m open field; up to ~30 m with obstacles).
• Tuya Smart app support (Wi‑Fi + Bluetooth) for remote control, scenarios and scheduling.
• Smart home compatibility with Google Home and Amazon Alexa; Apple HomeKit via Tuya bridge (optional).

Caractéristiques / spécifications techniques

• Denomination commerciale: Lyra T6
• Available sizes: 3×3 m, 3×4 m, 3×6 m, 4×4 m, 4×6 m (surface range: 9–24 m²).
• Structure material: Aluminium 6063‑T6 (T6 ArmorAlloy™).
• Coating: UV‑resistant powder coating (Matt Grey RAL7016, Matt White RAL9016).
• Louvre rotation: 0° – 100° (motorised, incremental positions).
• Wind resistance: 133 km/h operational; tested to 143 km/h by INTERTEK (EN 13659).
• Snow load: 110 kg/m² operational; tested to 160 kg/m² by INTERTEK.
• Pole profile: 120 × 120 × 2 mm (double channel).
• Beam profile: 160 × 95 × 1.7 mm with integrated gutter.
• Louvre profile: 160 × 33 × 1.4 mm (max length for louvres: 3 m).
• Pole height: 2,515 mm.
• Base plates: 8 mm steel plates (4 plates standard; 6 plates for 3×6 m and 4×6 m formats). Fixings for substrate not included (depend on anchoring surface).
• Motor: DC 24 V / 30 W, IP67 submersible, stroke 165 mm, force 800 N; certified failure rate <0.025% (tested across 10,000 installations).
• Transformer: YZ21008‑01A, IP65, housed in the pole; outputs: 24 VDC / 50 W (motor) + 24 VDC / 100 W (LED).
• Perimeter LED: IP67, 2 × 2.7 W/m, selectable 3000K (warm) and 6000K (cool), CRI 90.
• Solar rain sensor: model YZ61001‑01SR‑FSK; solar powered (600 mAh), autonomy ~6 months, all‑metal anti‑corrosion housing, wireless range 80 m, dimensions 105 × 68 × 34 mm, operating −20°C / +60°C, non‑contact sensing.
• Power supply: 100–240 VAC, 50/60 Hz (connection to mains via transformer inside pole).
• Remote: 868.35 MHz (range >200 m open field; typical reduced range with obstacles).
• App: Tuya Smart (iOS and Android) — remote operation, automation, scheduling.
• Smart home: Google Home, Alexa; Apple HomeKit via optional Tuya bridge.
• Package weight (approx.): total structure weight between ~150 and ~250 kg depending on size.
• Warranty: 10 years on structure; 3 years on motor.
• Installation: plug & play pre-wired connectors; recommended 2 persons for assembly; concrete footings or appropriate anchors required (footing dimensions and anchor type depend on site).
