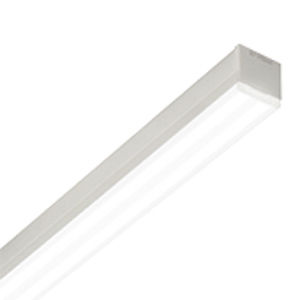

Surface-mounted light fixture 3F ZETA DR

LEDlinearIP40

Construction characteristics Illuminotechnical characteristics Diffused symmetric and asymmetric distribution. Lifetime (L93/B10): 30000 h. (tq+25°C) Lifetime (L90/B10): 50000 h. (tq+25°C) Lifetime (L85/B10): 80000 h. (tq+25°C) Lifetime (L80/B10): 100000 h. (tq+25°C) Photobiological safety RG0, risk exempt, in compliance with IEC 62471, IEC/TR 62778. Mechanical characteristics Housing in hot-galvanized steel, painted in white polyester, obtained through rolling process. Light unit in hot-galvanized steel, painted in white polyester base with fixing springs and retractable safety hooks in stainless steel. End caps in white polycarbonate. Stainless steel mounting brackets with anti-slip screws. Electrical characteristics Luminaires with EP permanent emergency wiring are EN 60598-2-22 standard compliant. Source characteristics Linear LED modules. Color initial tolerance (MacAdam): SDCM 3. On request different power levels, colour rendering indices and colour temperatures housing and accessories in different RAL colours wiring: CLO class II Applications Environments: architectural, commercial, transit areas, cornices, large mirrors, boards. UGR version Environments: exhibition areas, staterooms, with VDTs, halls, shops, great halls, offices. Installation Ceiling, suspension or wall installation.
