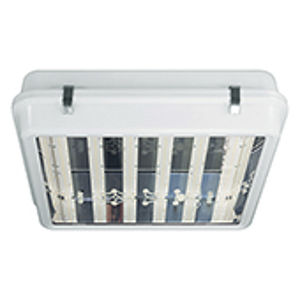

Surface-mounted light fixture 3F CUB

LEDsquareIP64

Construction characteristics Illuminotechnical characteristics Wide symmetric distribution. Lifetime (L90/B10): 30000 h. (tq+25°C) Lifetime (L85/B10): 50000 h. (tq+25°C) Lifetime (L80/B20): 80000 h. (tq+25°C) Lifetime (L70/B20): 100000 h. (tq+25°C) Photobiological safety RG0, risk exempt, in compliance with IEC 62471, IEC/TR 62778. Mechanical characteristics Housing with double casing in pressed aluminium, powder-coated in white epoxy-polyester, hinged opening. Quick connection in polycarbonate M20x1.5 cable gland for access to the terminal block. Ecologic anti-aging injected sealing gaskets. Stainless steel clips. Total flow recuperator in specular aluminium, with superficial titanium-magnesium treatment, non-iridescent. Fixing bracket. Electrical characteristics Quick connection. Source characteristics Linear LED modules. Color initial tolerance (MacAdam): SDCM 3. On request different colour rendering indices and colour temperatures concentrated distribution laminated glass wiring: single-circuit, emergency, CLO linear LED modules, with special protection against aggressive chemically-volatile substances, for standard LED technology double quick connection HACCP versions for use in the food industry
