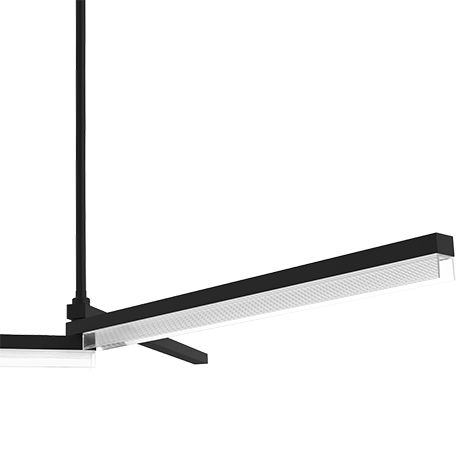

Hanging light fixture 3F TRITTICO

LEDlinearIP20

Construction characteristics Illuminotechnical characteristics Direct-indirect distribution. Lifetime (L92/B10): 30000 h. (tq+25°C) Lifetime (L85/B10): 50000 h. (tq+25°C) Photobiological safety RG0, risk exempt, in compliance with IEC 62471, IEC/TR 62778. Mechanical characteristics Extruded aluminium housing. Fixture composed of three independent adjustable arms that can be moved separately. Non-iridescent high efficiency aluminium with a titanium and magnesium surface treatment flow recuperator. Transparent PMMA methacrylate anti-glare filter. Arms for direct lighting with satin PMMA methacrylate lenses. Arm for indirect lighting with a translucent polycarbonate screen. Polycarbonate heads. Steel suspension fixture with poles H 300-500-800 mm with a brass rotation mechanism. Electrical characteristics In compliance with EN 60598-1. Peripheral cabling unit to recess into the ceiling. Class II. 4-pole terminal block, single 230V circuit, 2 DALI addresses. Source characteristics Linear LED modules. Color initial tolerance (MacAdam): SDCM 3. On request LED sources with different colour temperatures housing in different RAL colours wiring: CLO version for ceiling installation maximum pole height 1.3 m Applications Environments: with VDTs, meeting rooms, offices. Environments: architectural, commercial, staterooms, banks. Environments where dynamic, soft and diffuse light is required for optimal visual comfort.
