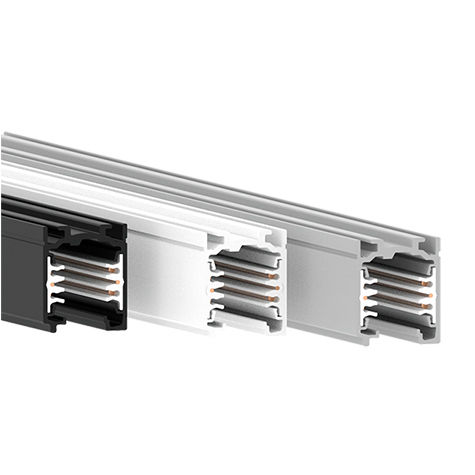

Track-light system BINARIO 3F

The Binario 3F is a mixed 3-phase system with two extra conductors for the management of any signal (eg DALI). The system is certified according to EN 60570 and its installation must be performed by qualified personnel. Three types of fixing: directly on the surface (using the holes already provided in binary) surface mounted using the metal clip suspended by tension steel cables and various clamps and brackets without exceeding the maximum loads are planned 1-2-3-4 m length rods are supplied with copper conductors already collected as prescribed by the safety standard. In case it is necessary to shorten the length of the track in the installation phase, after cutting use a special tool (on request) taking care to engagé the 4 conductors (L1-L2-L3-N ) for at least 5 mm, so that the electrical distance and correct creepage. Construction characteristics Mechanical characteristics Electrified track made from extruded aluminium, Eurostandard Plus compliant. The wires are enclosed in rigid extruded profiles made of PVC insulating material with high dielectric strength. Length: 1000-2000-3000-4000 mm. Available colors: white (B) and anodized aluminium (GR). (L1/L2/L3/N/GRD/DA/DA) 16A/440V 2x1A/50V FELV AC (DALI). Copper conductors.
