Floor-mounted office divider ARRAY

ceiling-mountedglassplastic

Overview

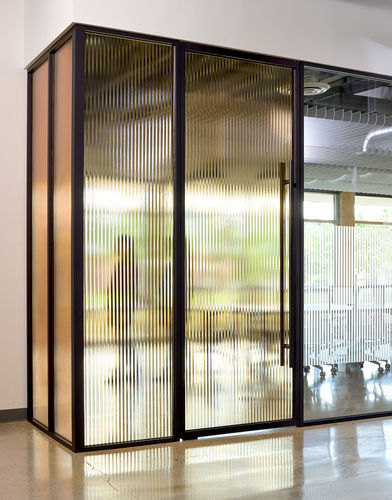

Array is a modular stick-built partition system designed for flexible architectural layouts. It accommodates both Varia resin panels and 3form Glass in a single continuous run, providing visual separation and acoustic control while maintaining a minimal frame profile.

Materials

• Compatible materials: Varia (formable resin panels) and 3form Glass (architectural-grade glass).
• Single-run capability to combine Varia and Glass for mixed-material layouts.

Design & Configuration
Flexible configurations support wall-to-wall runs, wall-to-end, end-to-end, ceiling-to-floor, step-ups, step-downs and bespoke layouts. The system's minimal profile places emphasis on material selection and placement to define the aesthetic.

Hardware Finish Options
Standard hardware finishes include Black Anodized and Clear Anodized Aluminum. Additional matte and gloss finishes and custom RAL colors are available.

• Black Anodized
• Clear Anodized
• Pebble Gray Matte
• Bone Gray Matte
• Taupe Gray Matte
• Signal White Gloss
• Signal White Matte
• Jet Black Gloss
• Jet Black Matte
• Smoke Gray Matte
• Shadow Gray Matte
• Carbide
• Architectural Bronze
• Cadet Gray Matte
• Slate Gray Matte

Hardware Features

• Horizontal mullions: up to four available per panel width.
• Doors: single or double doors with smooth, quiet pivot hinges; open to 180°.
• Glass corners: postless butted panel corner detail available for glass-only configurations.
• Minimized hardware options: vertical mullions optional in glass using silicone seams to reduce visible hardware.

Material Meets Hardware
Choose Varia, 3form Glass, or a combination to create integrated, design-forward layouts. Array pairs material options with hardware details to achieve the required visual and acoustic performance.

Product Details

• What You Get: Materials and hardware supplied per project specifications.
• Material Choices: Varia and/or 3form Glass.
• Design Choices: Dimensions
  Configuration
  Material selection and placement.
• Product Parameters: Max Height: 10'
  Max Width: no limit
  Panel Dimensions: Minimum Width: 12" , Max Width: 4'
  Door Max Dimension: 4' x 10'
  Vertical Mullions: Varia: Required, Glass: Optional
  STC Rating: Varia: 34, Glass: 36-38
• Lead Time: 6 weeks (not including transit time).

Technical specifications

• System type: modular stick-built partition system.
• Compatible materials: Varia (resin panels) and 3form Glass.
• Max system height: 10'.
• Panel width: minimum 12"; maximum 4'.
• Door capacity: single or double doors up to 4' x 10'.
• Vertical mullions: required for Varia; optional for Glass (silicone seams possible).
• Horizontal mullions: up to four per panel width.
• Acoustic performance (STC): Varia ~34; Glass ~36–38.
• Standard hardware finishes: Black Anodized, Clear Anodized; additional matte/gloss finishes and custom RAL colors available.
• Typical lead time: 6 weeks (does not include transit).
