Tertiary key cabinet KMS

Overview

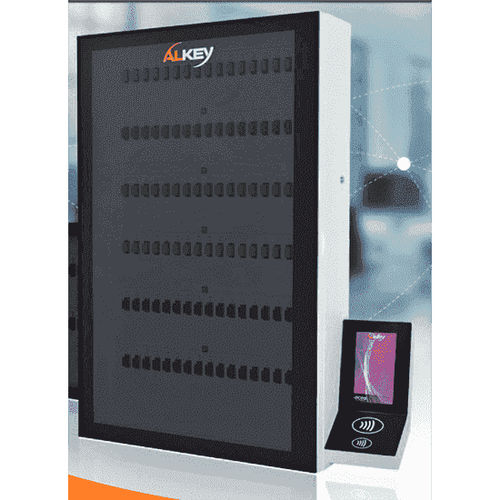

Alkey KMS is a key management system delivered as a cabinet solution adaptable to the needs of companies and institutions. The KMS key cabinet combines controlled key custody and ergonomic operation via an integrated touchscreen. It can operate in standalone mode or networked with configuration and supervision software to maintain secure access control at all times.

Main features

• Standalone mode with integrated touchscreen and interactive interface for on-site configuration.
• Networked operation via software for centralized control of multiple cabinets, real-time status monitoring and rights transfer.
• Event history with exportable reports (time, date, user).
• Configurable alarms in case of anomalies.
• Key return to free slot or predefined position for flexible management.
• Mechanical emergency key for manual unlocking.
• Grouping of multiple cabinets possible to manage large volumes.

Configurations & capacity
Multiple models and formats are available according to the number of keys to manage; modular configurations support installations from small to very large capacity (16 to 192 inviolable key tags).

Connection and supervision
The Alkey software enables central control of one or several cabinets: remote visualization of key availability, remote release, report and alarm generation. Occasional connection allows rights transfers and event uploads; permanent connection enables real-time supervision and continuous monitoring.

RFID compatibility

• 125 kHz cards with EM4102 or TK4100 chip and Atmel Temic T5577 memory cards.
• NXP MIFARE Classic 1K ® technology.
• NXP DESFire 4K high-security cards.
• HID cards in iClass 13.56 MHz technology.
• HID Crescendo high-security cards.

Target markets

• Central and regional administrations
• Banks and insurance companies
• Museums, monuments and convention centers
• Healthcare: hospitals, clinics, research centers, laboratories
• Education: schools and universities
• Industrial and logistics zones
• Transport hubs: ports, airports, stations, metros, trams

Technical specifications

• Model / range: KMS (key management system)
• Capacity: configurations from 16 to 192 inviolable key tags
• User interface: integrated touchscreen for standalone operation
• Operating modes: standalone or networked via supervision software
• Security: key return to free slot or predefined position; mechanical emergency key
• Supervision: remote visualization, remote release, customizable reports, alarms
• RFID compatibility: EM4102/TK4100, Temic T5577, MIFARE Classic, DESFire, HID iClass, HID Crescendo
• Installation: cabinets can be grouped to manage large key volumes
