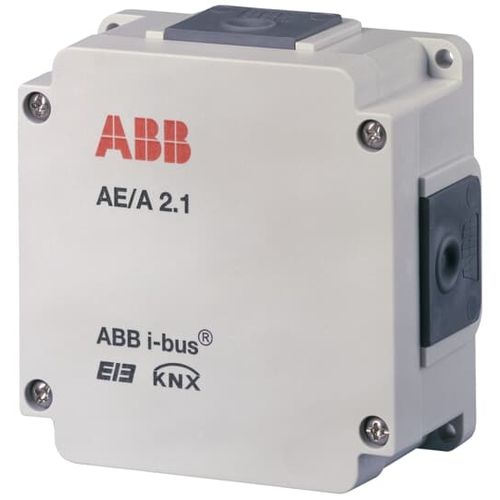

KNX input module AE/A2.1

The Analogue Input is used to detect and process 2 independent input signals. Among other things 0-1 V, 0-5 V, 0-10 V, 0-20 mA, 4-20 mA, 0-1000 Ohm, PT100 in 2-wire technology, PT1000 in 2-wire technology (value range -50…+150 °C), floating contacts, KT, KTY and user-defined input. Dimensions Product Net Depth / Length:117 mm Product Net Height:51 mm Product Net Width:117 mm Product Net Weight:0.25 kg Technical Compatible Bus Systems:KNX (TP) Degree of Protection:IP54 Mounting Type:Surface Mounted
