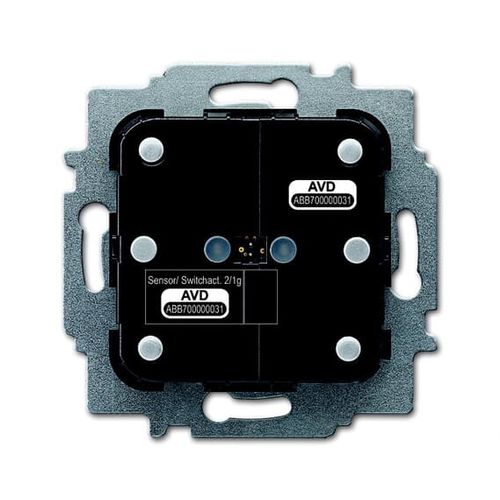

For switching 127 V~/230 V~ consumers. With integrated switch actuator. Switching function is available also without prior programming (left sensor channel is pre-configured). Configuration can be changed later via the web interface (groups, scenes, etc.). The right sensor channel for programming additional functions (groups, scenes, etc.). For contacting 2gang rocker 6230-2x-xxx, 6231-2x-xxx, 6232-2x-xxx, 6233-2x-xxx and 6234-2x-xxx. The bus can be connected via enclosed terminal block. When installing in the flush-mounted box, a spatial division between the bus cable and 127 V/230 V installation cable is to be adhered to! If this minimum distance is not possible, use electronic boxes or insulating tubes.
Dimensions
Product Net Depth / Length:4.5 cm
Product Net Height:7.1 cm
Product Net Width:7.1 cm
Product Net Weight:0.085 kg
Technical
Ambient Air Temperature:Operation -5...45 °C
Compatible Bus Systems:free@home
Degree of Protection:IP20
Mounting Type:Flush Mounted
