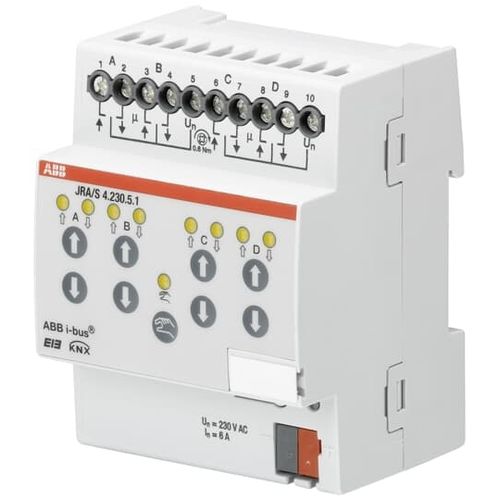

Roller shutter blind actuator JRA/S4.230.5.1

KNXhomeDIN rail

For the control of independent 230 V AC drives via ABB i-bus® KNX. The devices are designed for positioning blinds, roller shutters, awnings and other shading products as well as for controlling doors, windows and ventilation flaps. Additional auxiliary voltage is not needed. The travel times of the drive are detected automatically via current detection. To protect the drives, the output contacts are electromechanically locked against each other. Push buttons are located at the front of the device to control the outputs e.g. during commissioning. The current status of the output is displayed via LEDs. Dimensions Product Net Depth / Length:64.5 mm Product Net Height:90 mm Product Net Width:72 mm Product Net Weight:0.252 kg Technical Compatible Bus Systems:KNX (TP) Degree of Protection:IP20 Mounting Type:DIN-rail Width in Number of Modular Spacings:4
