Electronic lock SVISD-SB

magnetic carddoor1 point

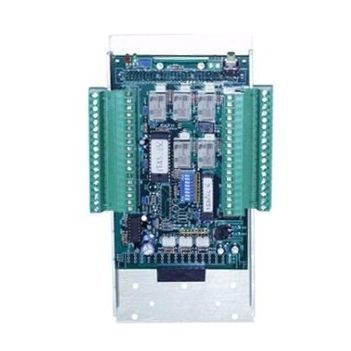

Control unit for the access management in restricted areas (self-bank, self-service etc). Fully equipped with vocal (vocal synth system and pre-recorded messages) and optical (LCD display and signalling LEDs) interface for those who use the service in the area. It controls the magnetic card readers and the electric lock of the access door to the area, the human presence sensors inside the area, the time-out mechanisms of the area, all anomaly (door not closed, user not leaving the area etc) and alarm (emergency alarm) conditions that may occur in the area. Proprietary software, which ca be personalized on the customer’s request. Microcontroller card with watch-dog, RAM Time-keeper (8k), serial RS 232/RS 485; Optoisolated inputs (n.24); Outputs with relays (n.5); Outputs with transistors (n.19); Programmable vocal synth system (on-board); Specific software (possible integration on request); Pin-to-pin connections. Supply voltage 12 Vdc; IP20 aluminium container.
