Floor spotlight LightPoint

LEDroundIP67

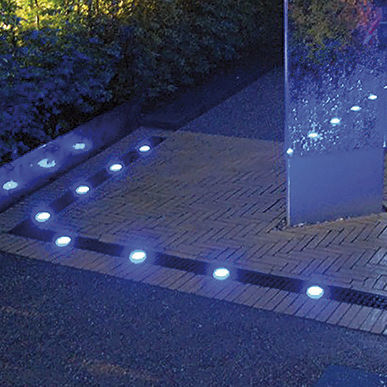

Lighting and drainage system for landscape applications ACO LightPoint can enhance many professionally designed landscaping applications by providing efficient and illuminated drainage. A single LED spotlight with stainless steel surround is installed in the 500mm ductile iron grating. A choice of white or blue spotlights is available as standard. Where different colour combinations are required, RGB LED lighting control technology is available on request. This can be used to provide lighting in colours of your own choice, or to control a lighting system which changes colour according to a sequence you define. To provide optimum lighting and drainage options, ACO LightPoint channels and gratings are available in two widths, 100mm and 200mm. Each ACO LightPoint grating also comes complete with ACO Drainlock, a boltless fastening system for speedy installation. The high performance LED spotlights are sealed against the ingress of water and offer long working life of approx 100,000 hours. During this time the intensity of the light remains constant. The nominal voltage of the system is 28V DC and each LED spotlight is rated at 0.6W. The LED spotlight comes complete with a cable tail and watertight connection, and meets IP 67 protection class. Up to eighteen ACO LightPoint spotlights can be connected together and operated from a single 28V transformer. LED spotlights, gratings and channel components are sold individually to provide a wide choice of product combinations. Two ACO LightPoint kits provide a range of electrical accessories which allow you to complete or extend the installation.
