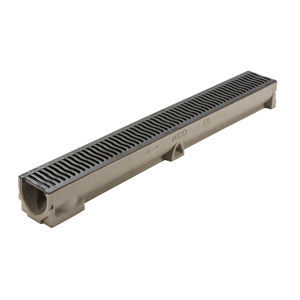

Drainage channel with grating RainDrain B 125

side-slottedpolymer concretecast iron grate

Manufactured from Vienite®, ACO’s high strength recycled polymer concrete material, ACO RainDrain® B 125 is suitable for vehicle traffic up to Load Class B 125. The high quality ACO RainDrain® B 125 channels interlock, allowing for quick and easy installation. ACO RainDrain B 125 comes complete with a cast iron grating making it ideal for driveway applications. A full range of accessories are available, designed to aid simple and fast installation The channel comes complete with an offset slotted grating, ideal for block paving up to and including 60mm. ACO's range of elegant and modern 'Complete the Look' gratings are available to provide choice and style to driveway and patio projects. A choice of three gratings are available to provide the perfect finish in B 125 load class: Antique Iron Heelguard ATec (Supplied as standard) Mosaic Heelguard ATec Intercept Heelguard ATec Features & Benefits Features Clip-locking grating for secure and simple installation Cast iron grating for Load Class B 125 Lightweight design for easy handling and installation Channel shape anchors product into concrete surround UKCA and CE marked and fully certified to Load Class B 125 BS EN 1433:2002 Benefits Knock-out for connection to 110mm PVC-U pipe Sealant groove for simple watertight installation Profile improves speed of water and promotes self cleansing Channels interlock for quick and simple on-site fabrications Discreet 10mm inlet slot Manufactured from recycled material Channel shape anchors product into concrete surround UKCA and CE marked and fully certified to Load Class B 125 BS EN 1433:2002
