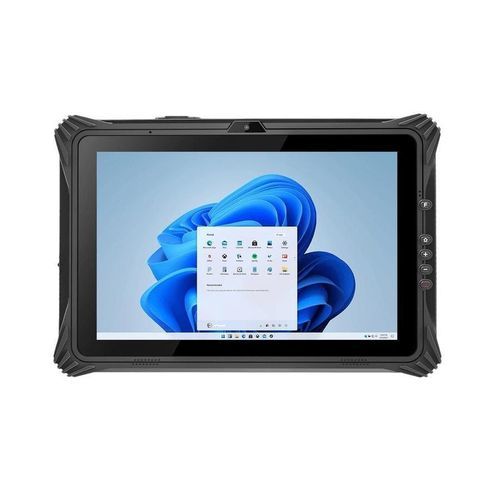

Home automation system touch screen I20L

wall-mountedwith touchscreenmulti-touch screen

Overview
The I20L is a 12.2-inch rugged tablet designed for POS and mobile enterprise applications, featuring a high-brightness P‑Cap multi‑touch display, Intel Core Ultra processors and Windows 11 options. Modular connectivity and optional accessories support field, retail and hospitality deployments.

Highlights

• 12.2-inch IPS 1920×1200 P‑Cap 10‑point multi‑touch display — 700 nits
• Intel Core Ultra processors (Ultra 5 standard; Ultra 7 optional)
• Windows 11 Pro/Home with Windows IoT optional

Processor

• Intel Core Ultra 5 226V (standard)
• Intel Core Ultra 7 256V (optional)
• Intel Core Ultra 7 258V (optional)

Memory (RAM)

• 16 GB LPDDR5x (standard)
• 32 GB optional with Intel Core Ultra 7 258V

Storage

• 256 GB SSD (standard)
• Optional 512 GB or 1 TB SSD

Display

• 12.2" diagonal, 16:10 aspect ratio
• P‑Cap 10‑point multi‑touch
• Resolution: 1920 x 1200 pixels
• Brightness: 700 nits

Connections

• 1x USB 3.2 Type‑A
• 1x Thunderbolt 4
• 1x SIM card slot
• 1x micro SD slot
• 1x HDMI 2.0a Mini
• 1x DC ⌀5.5 mm power input
• 1x 12‑pin Pogo connector
• 1x headphone jack
• Optional 4‑in‑1 module: RJ45, RS232, USB 2.0 or 1D/2D scanner

Operating system

• Windows 11 Pro / Home
• Windows IoT optional

Accessories / Features

• GPS
• 4G, 5G (optional)
• Bluetooth 5.4
• Wi‑Fi 6E
• Docking station and quad charging station
• Wrist strap, carrying handle and car mount
• Replaceable battery

Security

• IP65 rating

Camera

• 2 MP front camera
• 13 MP rear camera

Technical specifications

• Model: I20L
• Display: 12.2" IPS, 16:10, 1920×1200, P‑Cap 10‑point multi‑touch
• Brightness: 700 nits
• Processor: Intel Core Ultra 5 226V (standard); Intel Core Ultra 7 256V / 258V (optional)
• Memory: 16 GB LPDDR5x (standard); 32 GB optional with Ultra 7 258V
• Storage: 256 GB SSD (standard); optional 512 GB or 1 TB SSD
• Connectivity: USB 3.2 Type‑A, Thunderbolt 4, SIM, micro SD, HDMI 2.0a Mini, DC ⌀5.5 mm, 12‑pin Pogo, headphone jack
• Optional 4‑in‑1 module: RJ45, RS232, USB 2.0 or 1D/2D scanner
• Wireless: Bluetooth 5.4, Wi‑Fi 6E; GPS; optional 4G/5G
• Operating System: Windows 11 Pro / Home; Windows IoT optional
• Security: IP65
• Cameras: 2 MP front, 13 MP rear
• Power / Battery: replaceable battery (supports docking / quad charging)
• Use cases: POS systems, retail, hospitality, mobile enterprise
