IP66 floodlight GALILEO 1, 2, 3 EB

LEDcommercialoutdoor

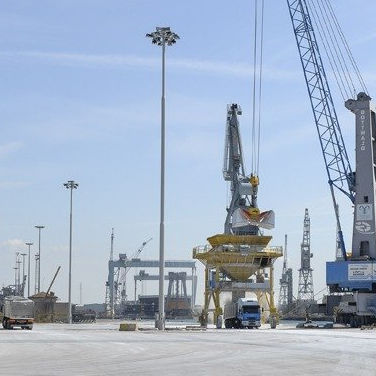

APPLICATION Flood lighting, large areas and street lighting. MECHANICAL CHARACTERISTICS Fixing: galvanized and painted steel. Body and heat-sink in die-cast aluminium UNI EN1706 with low copper content. Powder painted. Gasket in polyurethane. Mounting with adjustable integrated flange (see available flanges section) Screen: flat tempered glass 4mm thickness high transparency. Metallic cable gland M20x1,5 – IP68 Protection degree IP66 | IK08 Operating temperature: - 40°C + 50°C (252mA) - 40°C / +35°C (700mA) Corrosion protection: 1500hr saline fog ISO 9227. ELECTRICAL CHARACTERISTICS Insulation class: GALILEO 1 EB: I, II GALILEO 2 EB | GALILEO 3 EB: I Power supply: 220-240V - 50/60Hz. LED current: 525mA | 700mA Power factor: > 0.9 (at full load). Surge protection: integrated SPD, 10kV-10kA. Pulse withstand ≥ 8kV CM/DM Pulse withstand 10kV CM/DM LED source lifetime (tq=25°C 525mA): >70.000hr L80B10 >100.000hr L80, TM-21 700mA: >55.000hr L80B10 >100.000hr L80, TM-21 Dimming options: F: Fixed power not dimmable. DA: Automatic dimming (virtual midnight) with default profile. DB: Dual Power with control wire. DALI: Digital dimming interface DALI. PLM: Power Line single point communication system.
