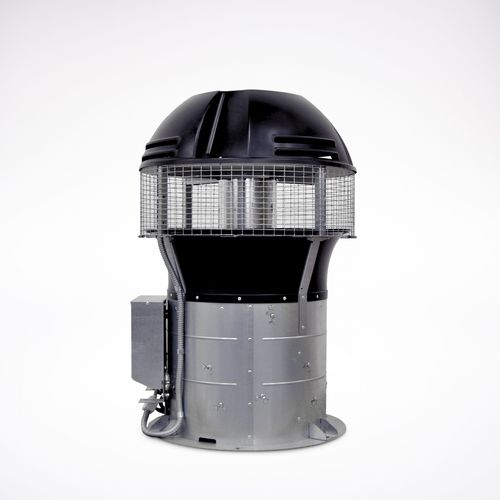

Galvanized steel roof outlet VBP+

polyethylene (PE)commercial

The VBP+ hybrid ventilation fan range is the ideal solution for the renovation of buildings equipped with natural or passive stack ventilation ducts, improving the performance of the ventilation through a very low electrical consumption. Its hybrid working, at very low pressure, (natural or mechanical mode) enables to automatically adapt to weather conditions to keep the pressure in the ductwork, all year long. The VBP+ is specially designed for demand controlled ventilation (humidity sensitive, presence detection or other activation modes) thanks to its pressure management. Located on a terrace or on a slope roof, the VBP+ is easily installed on the top of chimney through adaptation parts. Its large free area (equivalent to 8 ducts of ø125 mm) allows to gather several collective or individual ducts without reducing the cross section. Not critical in case of supply default with its patented blades design (no pressure losses when stopped), the VBP+ requires a very light maintenance in comparison with standard mechanical systems, making of it a privileged solution for social housing. Equipped with an EC motor, the VBP+ has a very low energy consumption. Hybrid working: allows natural ventilation when stopped / at very low speed. Not critical: ensures natural ventilation if the fan stops. Low energy consumption: only 35 W at 800 m³/h @ 20 Pa. Constant pressure: adapted to demand controlled ventilation. Adapts to weather conditions: management system (ms version) with temperature sensor. Renovation or new building, on natural ventilation ductwork. Alarm output (ms version). Low maintenance: low air speed = lower dusting. Patented smart blades design
