Polyamide joint cover AF Cord

mineral woolfor expansion joints

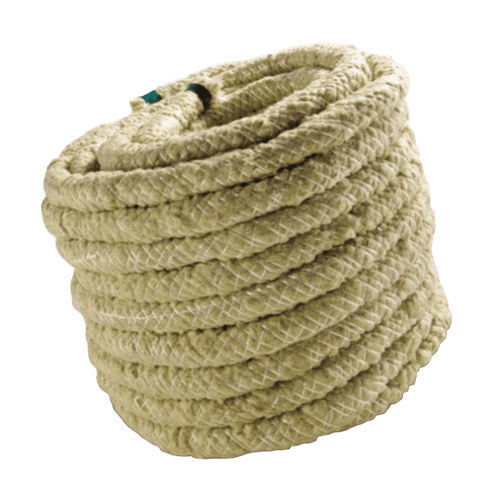

Fire protection for expansion joints AF CORD is a cord designed under EN 1366-4 and EI 120 certified for sealing expansion joints with a maximum width of 30 mm. The product consists of a mineral wool cord covered with a polyamide mesh. AF CORD application is simple and intuitive. Insert the cord inside the joint by compressing it with your hands. Appearance: rock wool cord covered with glass fabric mesh; Nominal diameter: 50 mm; Length: 25 m rolls; Nominal density: 50 Kg/m3; Weight: 300 g/m; Maximum joint width: 30 mm. Certifications Class EI 120 (EN 1336-4) joints on rigid wall. Packaging and Storage 25m rolls in cardboard boxes. Unlimited under normal storage conditions. Specification Supply and application of AF CORD fireproof joint cover consisting of a rock wool cord covered with fibreglass mesh, certified for EI 120 requalification of joints with a maximum width of 30 mm. Application Method Insert the AF CORD into the joint by pushing it with your hands. Reason to choose AF Cord simple and intuitive application; no need of complementary sealants; no waste, can be cut to size.
